CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

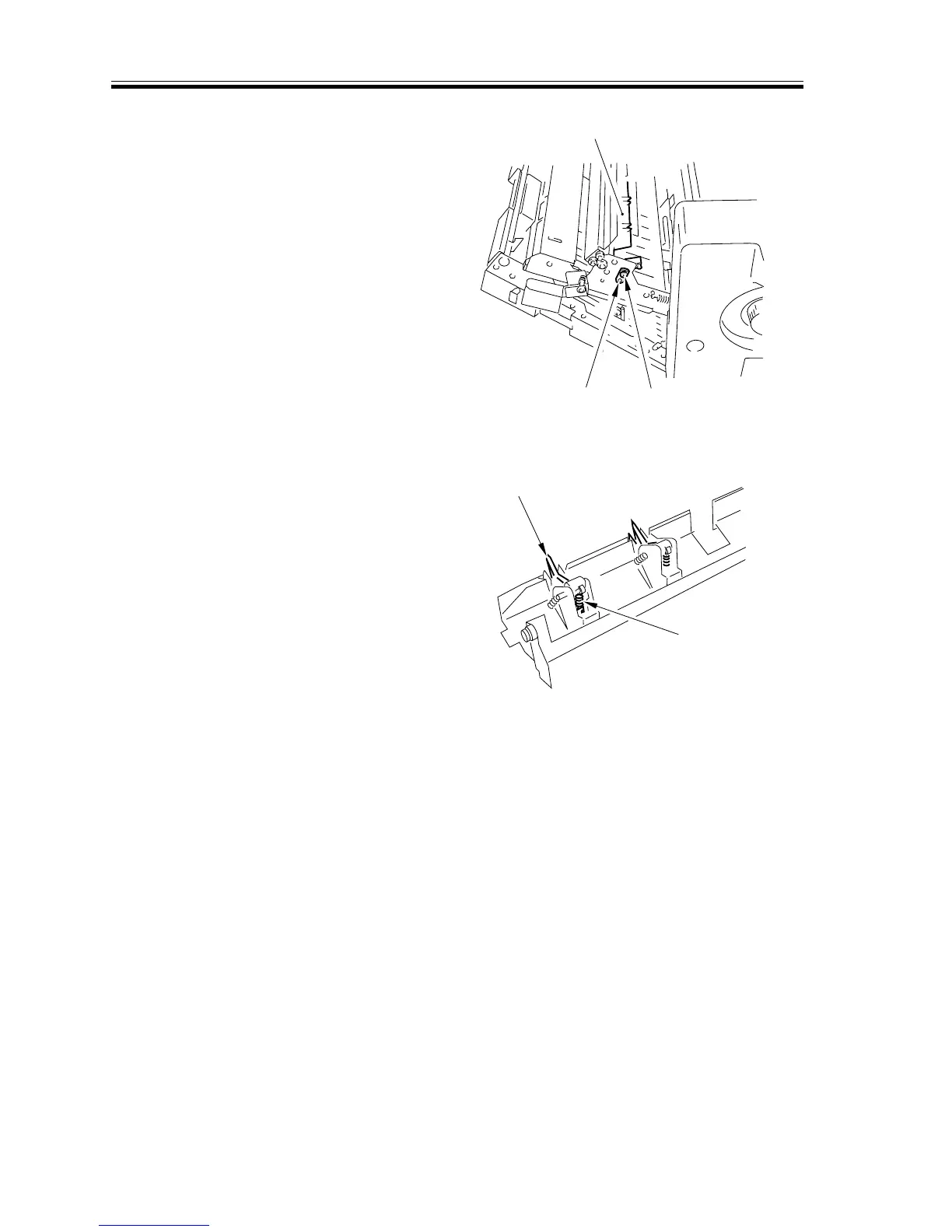

4) Remove the screw [5], and detach the
positioning pin [6] of the separation
claw unit; then, detach the separation
claw unit [7].
F02-507-27
5) Remove the spring [8], and detach the
separation claw [9].
F02-507-28
[5]
[6]
[7]
[8]
[9]
