2-136
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
CHAPTER 2 NEW FUNCTIONS

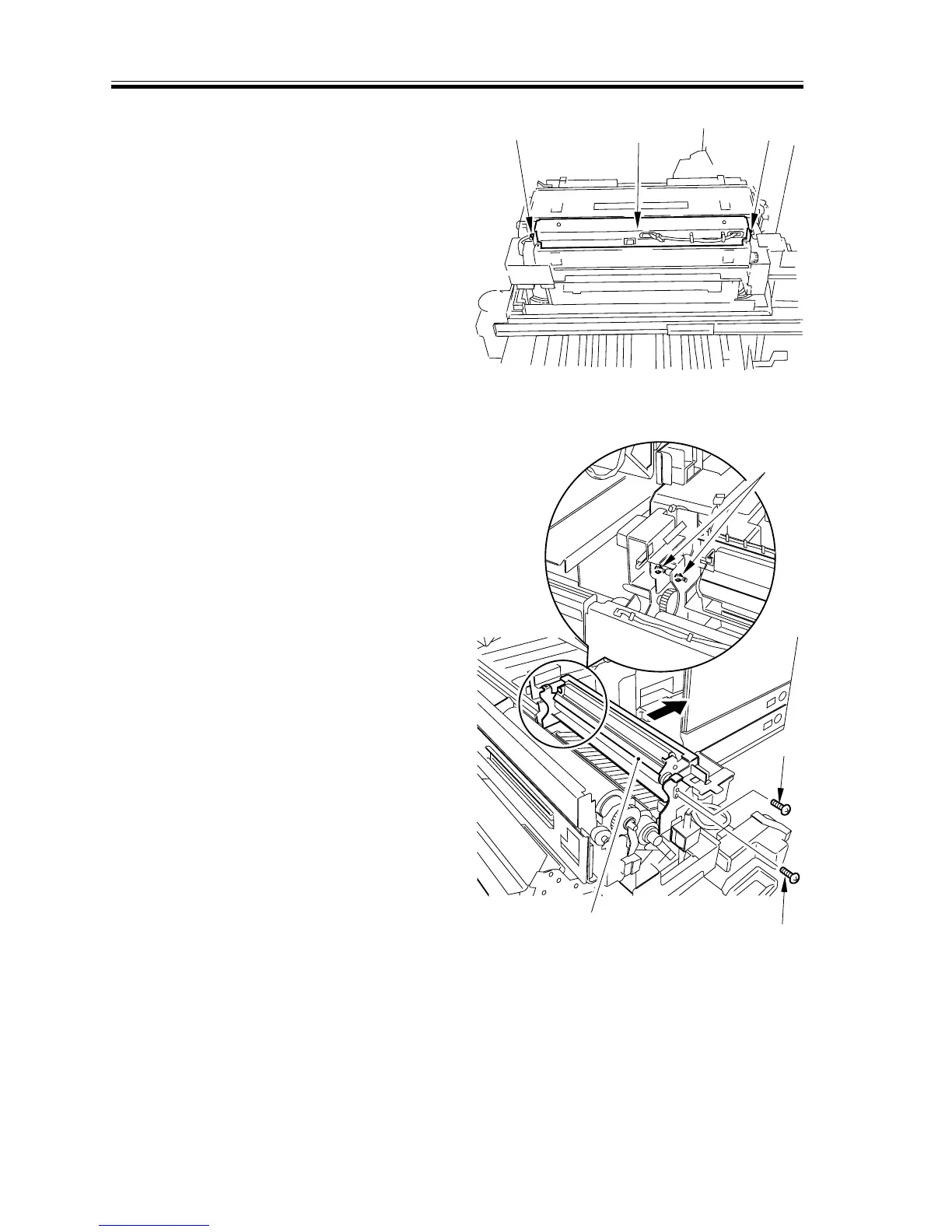

6) Remove the two screws [7], and open
the upper fixing roller unit [8].
F02-610-02
7) Remove the two screws [9] each at the
front and the rear; then, shift the oil ap-
plying unit [10] in the direction of the
arrow.
F02-610-03
[7] [7][8]
[9]
[9]
[9]
[10]
