2-160
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

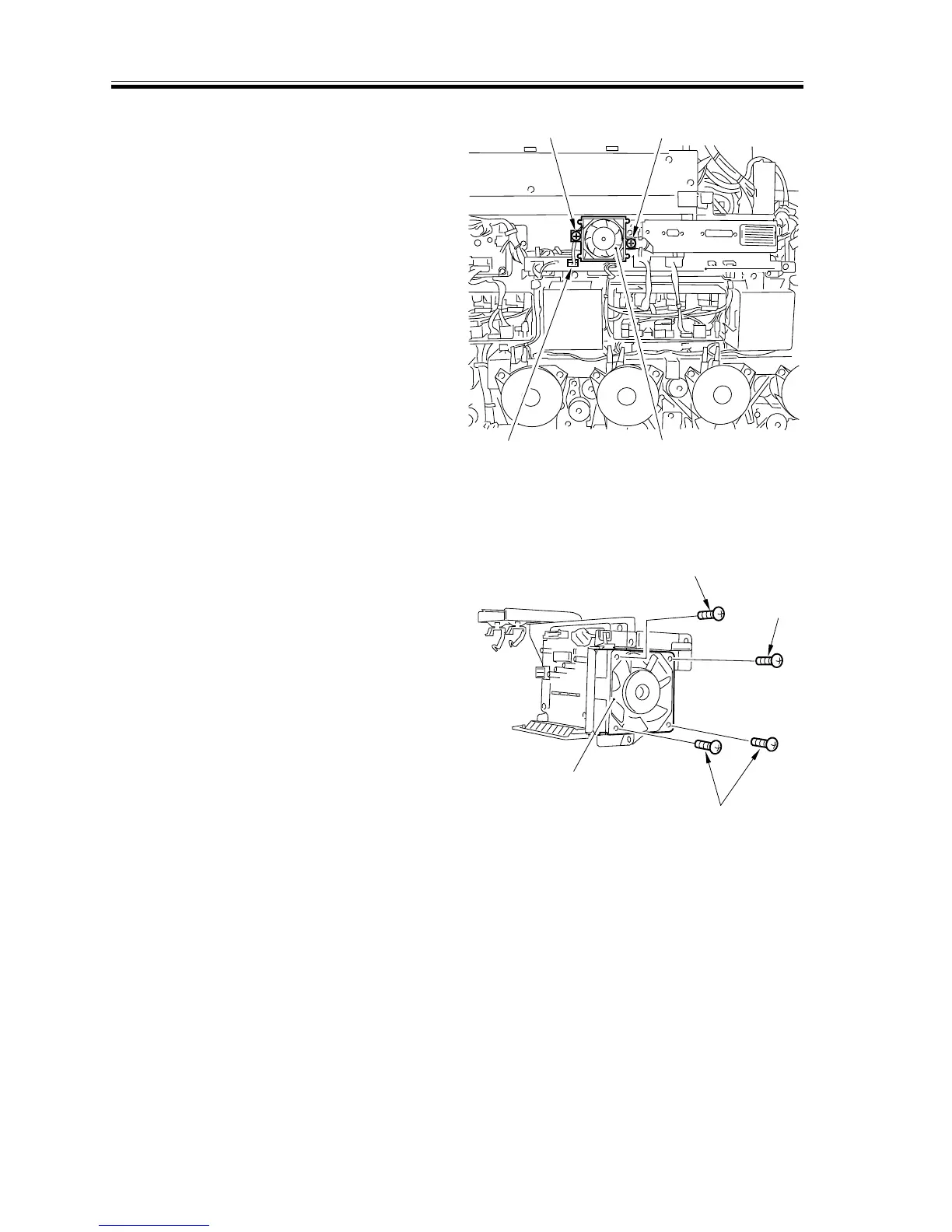

4) Disconnect the connector [4], and re-
move the two screws [5]; then, detach
the laser scanner motor cooling fan [6].
[4]
[6]
[5]
[5]
F02-706-03
b. Removing the Pick Up Cooling Fan 2
1) Remove the rear cover (2).
2) Remove the DC driver PCB. (See the
instructions on how to remove the DC
motor driver PCB.)
3) Remove the four screws [1], and detach
the pick up cooling fan 2 [2].
[2]
[1]
[1]
[1]
F02-706-04
