2-161
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

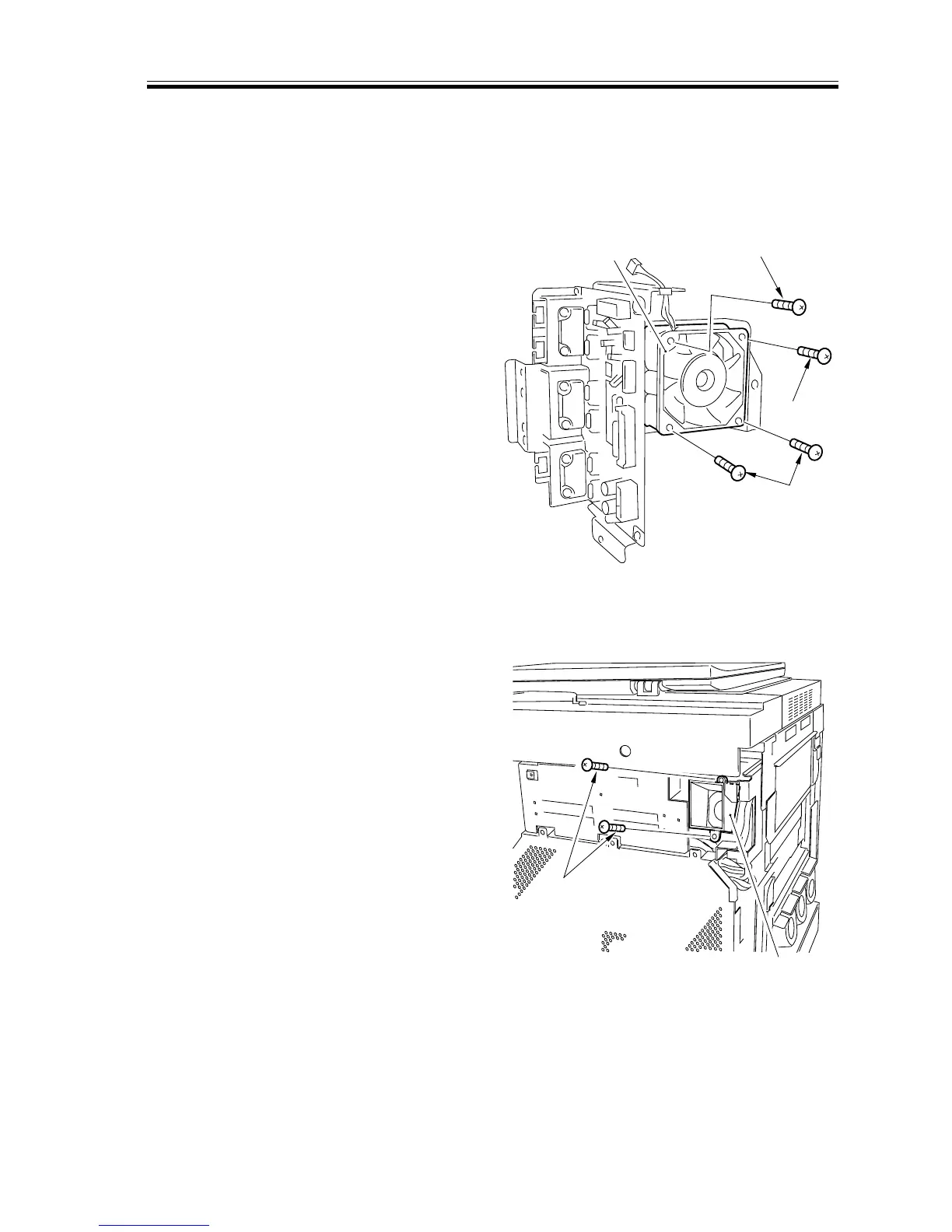

c. Removing the Pick Up Cooling Fan 1
1) Remove the rear cover (2).
2) Remove the multifeeder driver PCB.
(See the instructions on how to remove
the multifeeder driver PCB.)
3) Remove the four screws [1], and detach
the pickup cooling fan 1 [2].
[1]
[2]
[1]
[1]
F02-706-05
d. Removing the Fixing Heat Discharge Fan
1) Remove the rear cover (1).
2) Remove the two screws [1], and detach
the fan duct [2].
[1]
[2]
F02-706-06
