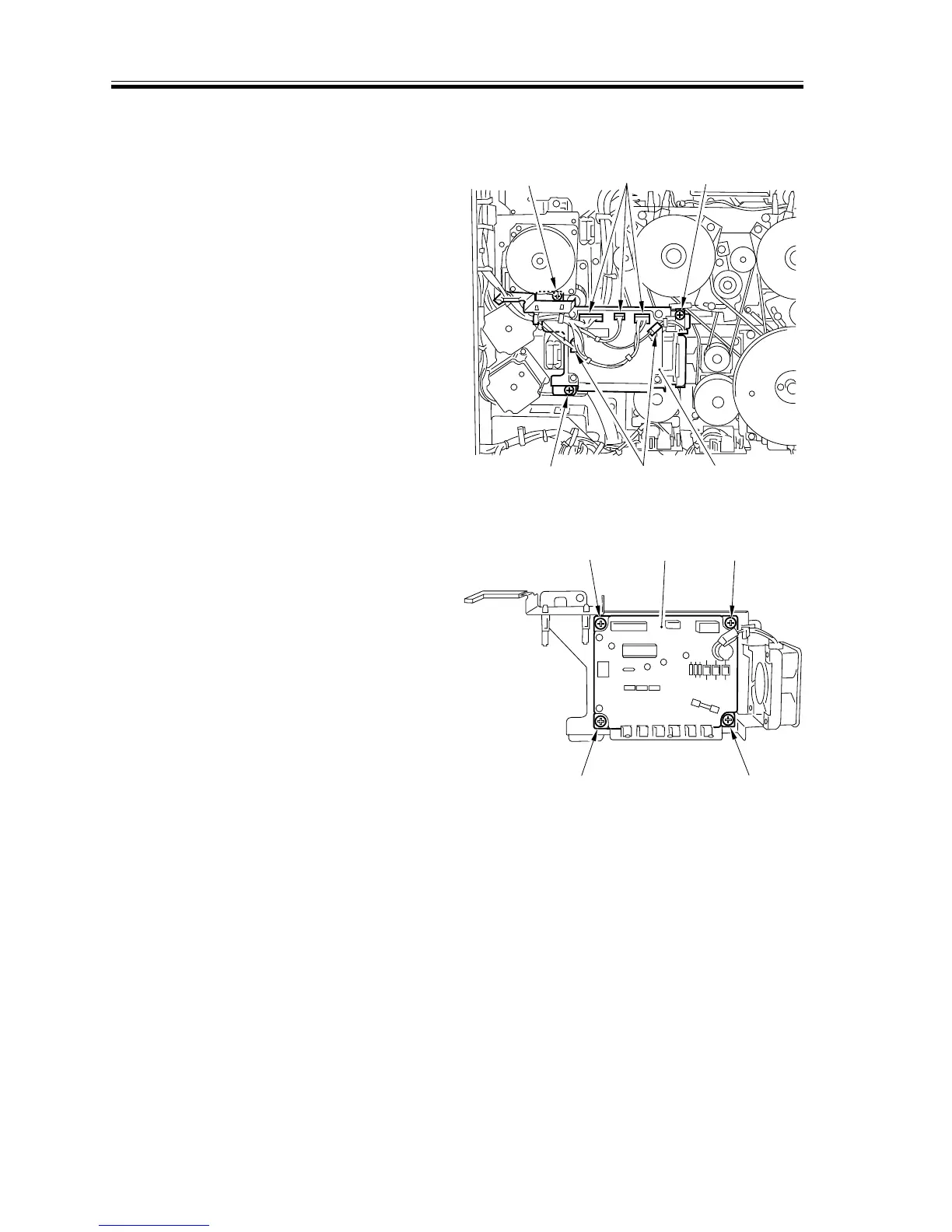

b. Removing the DC Driver PCB
1) Removing the rear cover (2).
2) Remove three screws [1], and discon-
nect the five connectors [2]; then, de-
tach the DC driver PCB unit [3].
[1]
[1]
[1]
[2]
[2]
[3]
[4]
[4]
[4]
[5]
[4]
F02-706-24
3) Remove the four screws [4], and detach
the DC drive PCB [5].
F02-706-25
