2-172
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

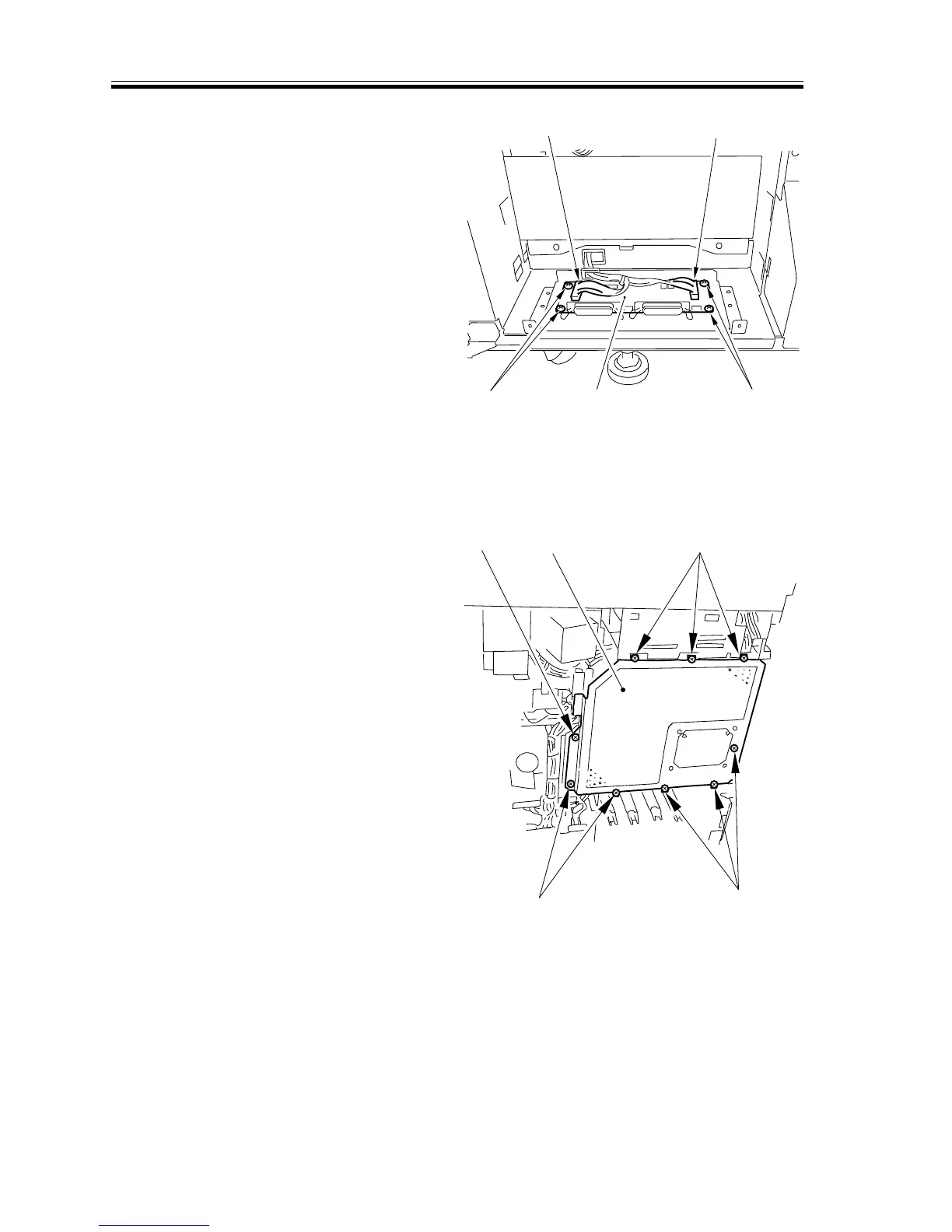

4) Disconnect the two connectors [4], and
remove the four screws [5]; then, detach
the download PCB [6].
[4]
[4]
[5]
[5][6]
[1]
[1]
[1]
[1][2]
F02-706-28
e. Removing the DC Controller PCB
1) Remove the rear cover (1).
2) Remove the nine screws [1], and detach
the shield plate [2].
F02-706-29
