[9]
[7]
F02-706-36

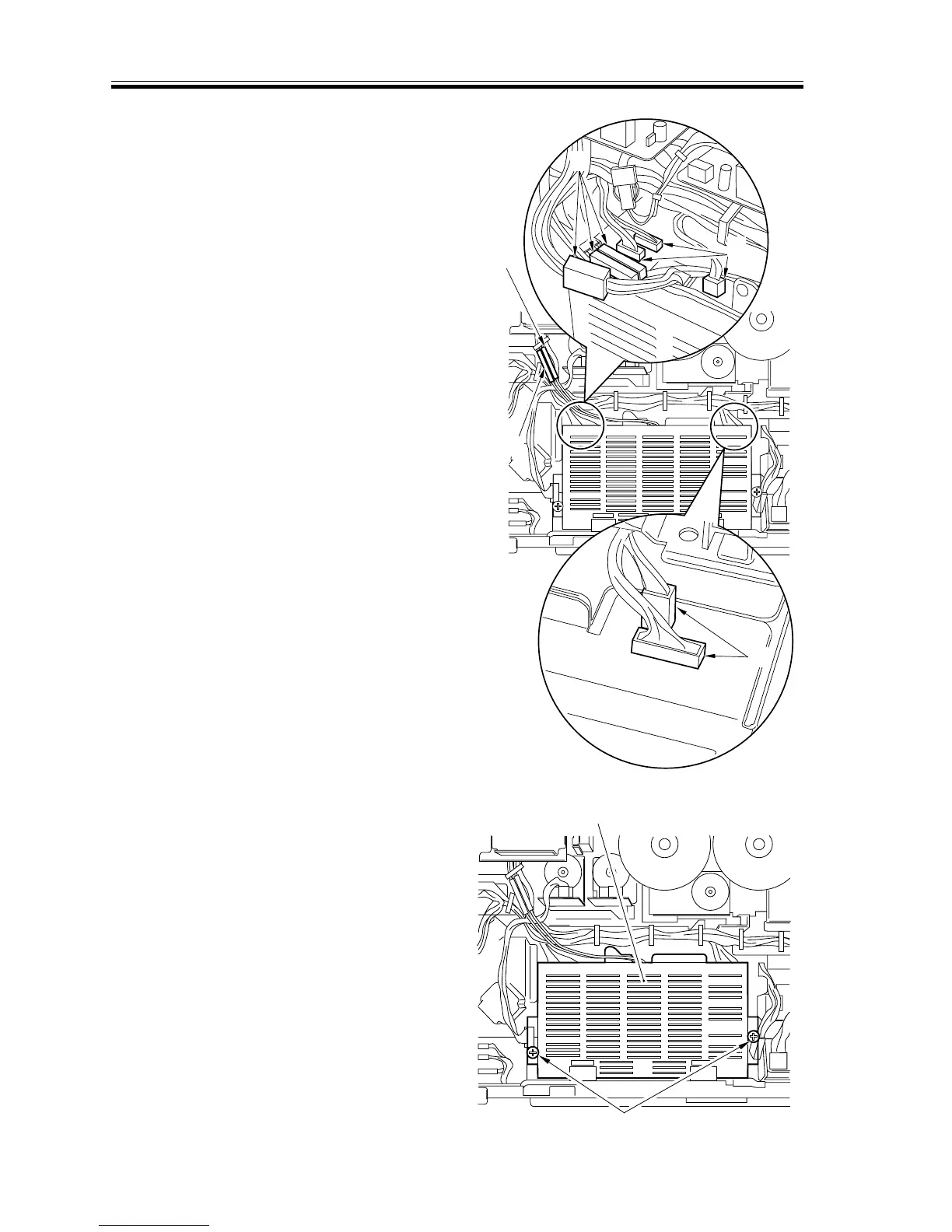

4) Remove the two screws [7], and discon-
nect the ten connectors [8]; then, detach
the developing bias high-voltage assem-
bly (HVT3) [9].
[7]
[8]
[8]
[8]
[8]
F02-706-35
