2-177
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

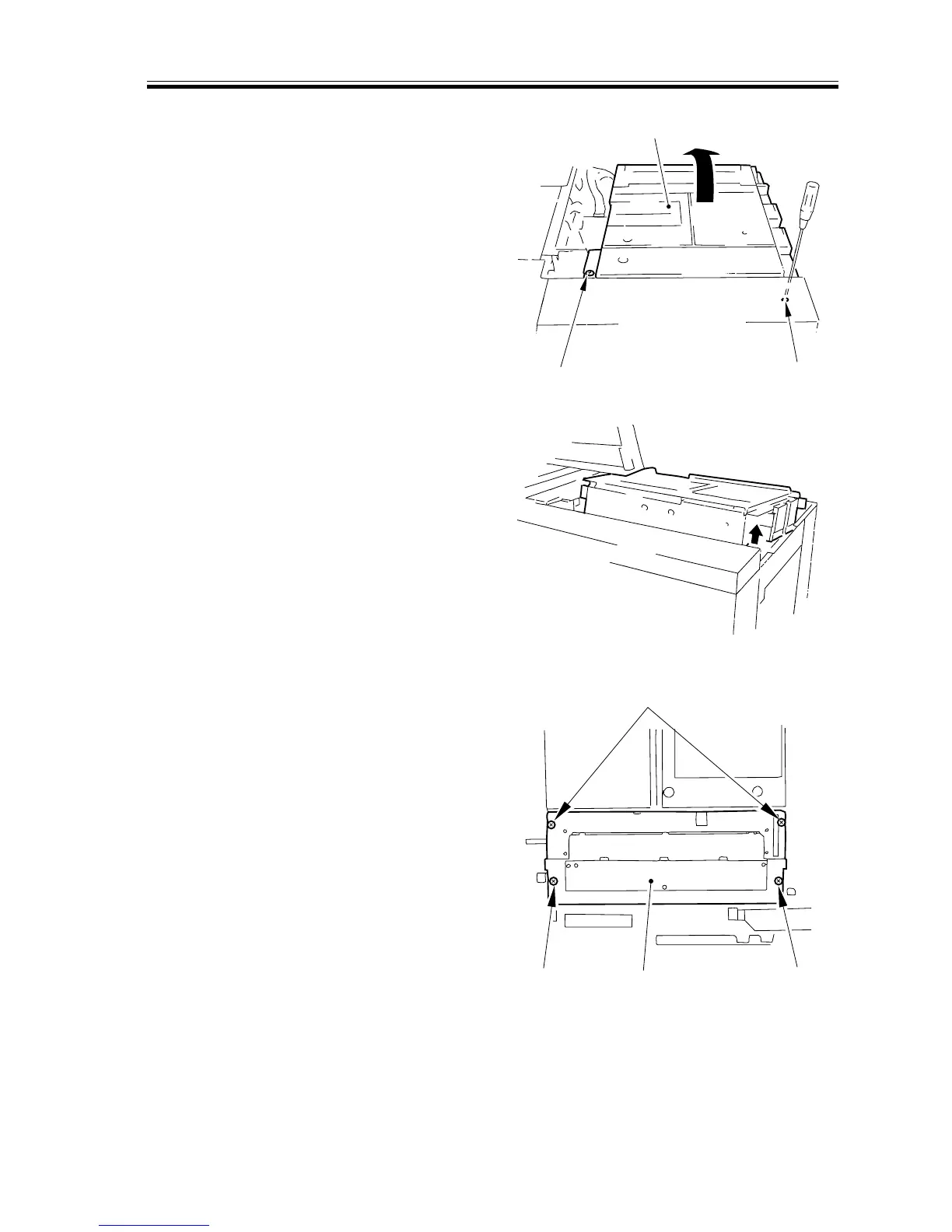

i. Removing the Analog Processor PCB
1) Remove the fixing screw [1], and secure
the digital unit [2] in the position indi-
cated.
[1]
[1]
[2]
[3]
[3]
[3]
[4]
F02-706-37
F02-706-38
2) Remove the four screws [3], and detach
the reader controller cover [4].
F02-706-39
