CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

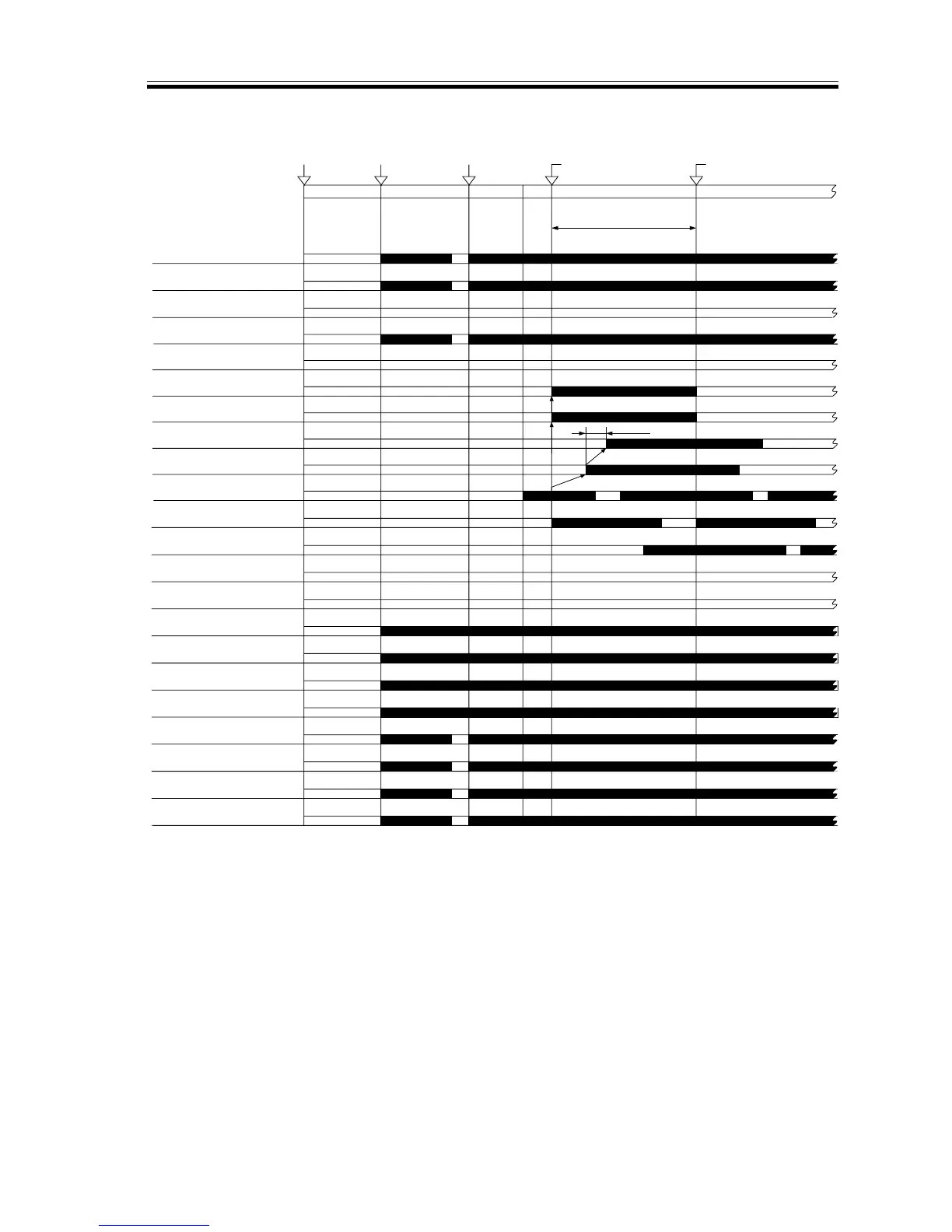

F02-903-02
Copier main motor
Copier delivery sensor
Buffer input motor
(M1)
Reversal motor
(M2)
Buffer output motor
(M3)
Flapper solenoid
(SL1)
Downward curl removing
solenoid 1 (SL3)
Downward curl removing
solenoid 2 (SL4)
Upward curl removing
solenoid 1 (SL5)
Upward curl removing
solenoid 2 (SL6)
Inlet paper sensor
(PS8)
Outlet paper sensor
(PS3)
Reversal timing sensor
(PS1)
Reversal jam sensor
(PS2)
Cooling fan 1
(FM1)
Cooling fan 2
(FM2)
Cooling fan 3
(FM3)
Cooling fan 4
(FM4)
Lower feed roller
Downward curl reniving
roller
Upper feed roller
Upward curl removing roller
1st sheet 2nd sheet
Start110˚C
Power switch ON
100ms
1181ms
