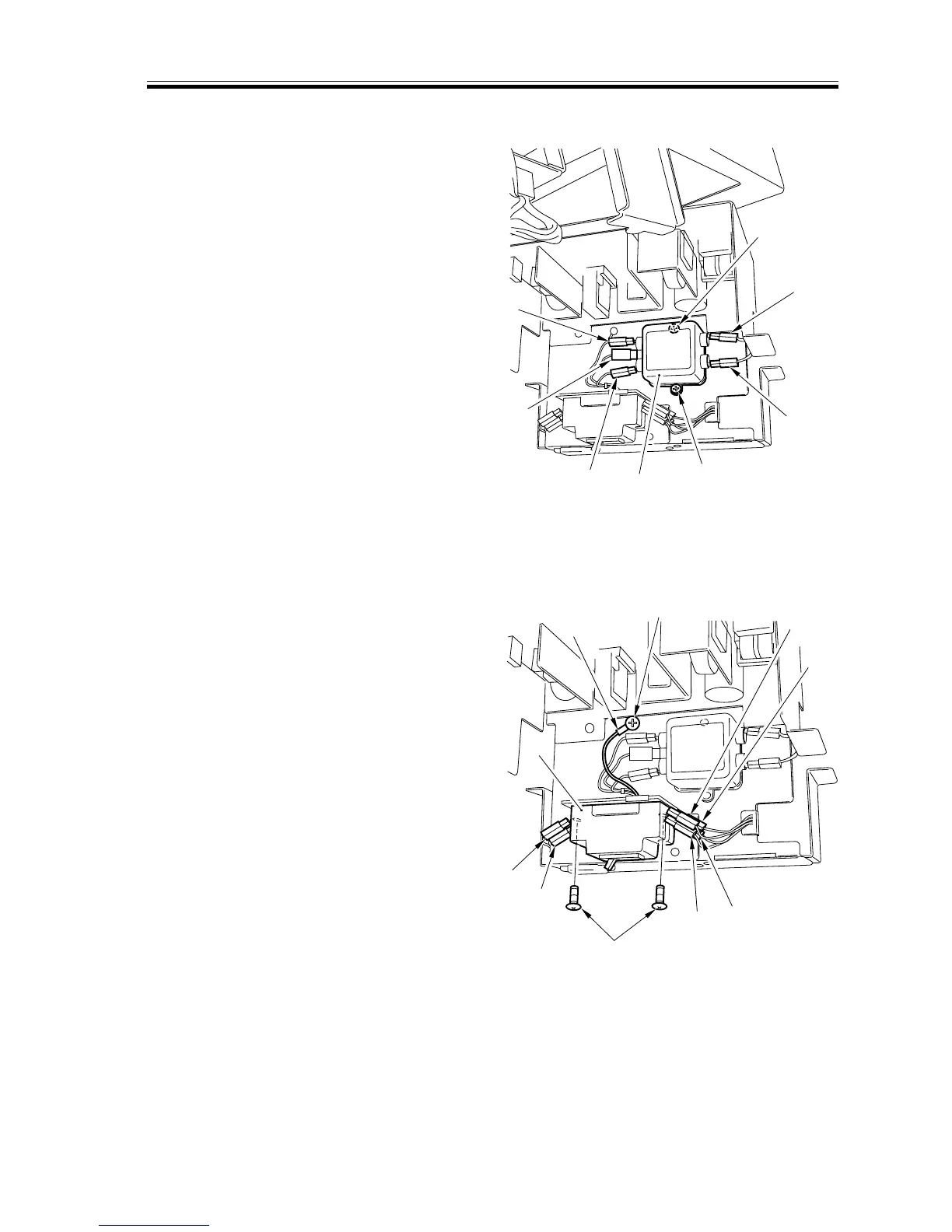

3) Remove the five terminals [3] and two
screws [4]; then, detach the noise filter
[5].
F02-907-63
j. Removing the Leakage Breaker
1) Remove the rear cover.
2) Remove the screw [1], and detach the
rounding wire [2]. Thereafter, remove
six terminals [3] and the two screws [4];
then, detach the leakage breaker [5].
F02-907-64
