CANON CLC5000 REV.0 JAN. 2001
CHAPTER 3 INSTALLATION
3-9
Step Work Remarks
Transfer unit
fixing bracket
Transfer unit cover
screw
screw

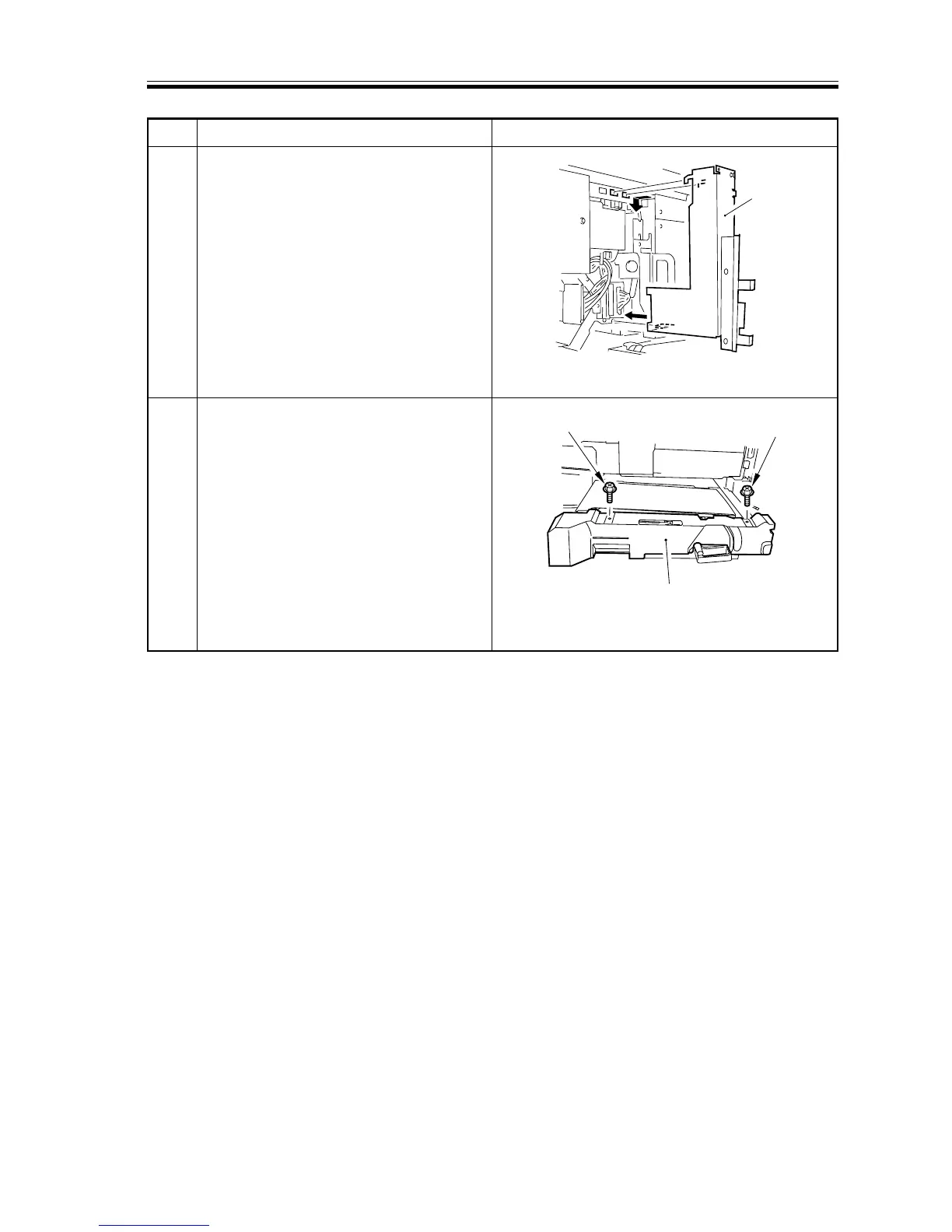

9 After removing the hopper left cover
and the separation charging assembly,
mount the transfer unit fixing bracket to
the front side plate of the machine.
10 Remove the two screws, and detach the
pre-transfer cover.
F03-302-06
F03-302-07
To Next Page
