Canon CLC5000 - Page 314

COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
CHAPTER 3 INSTALLATION
3-13
Step Work Remarks
20 Slide out the fixing assembly, and
remove the packing materials and
taping.
21 Pull out the fixing pressure releasing spacer
(2 pc.).
22 Set the fixing assembly.

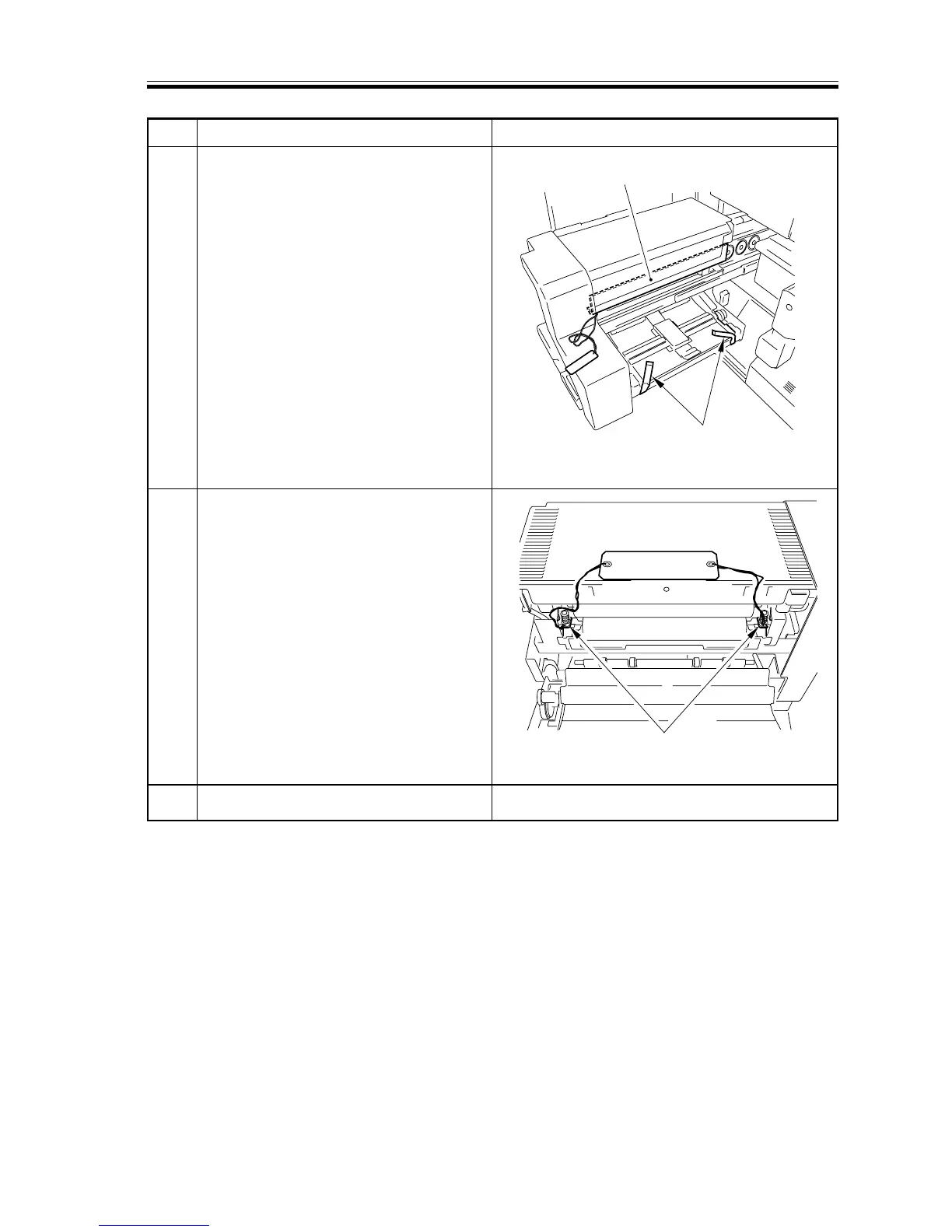

F03-302-17
F03-302-18
Taping
Packing materials
Pressure releasing spacer
