CANON CLC5000 REV.0 JAN. 2001
CHAPTER 3 INSTALLATION
3-21

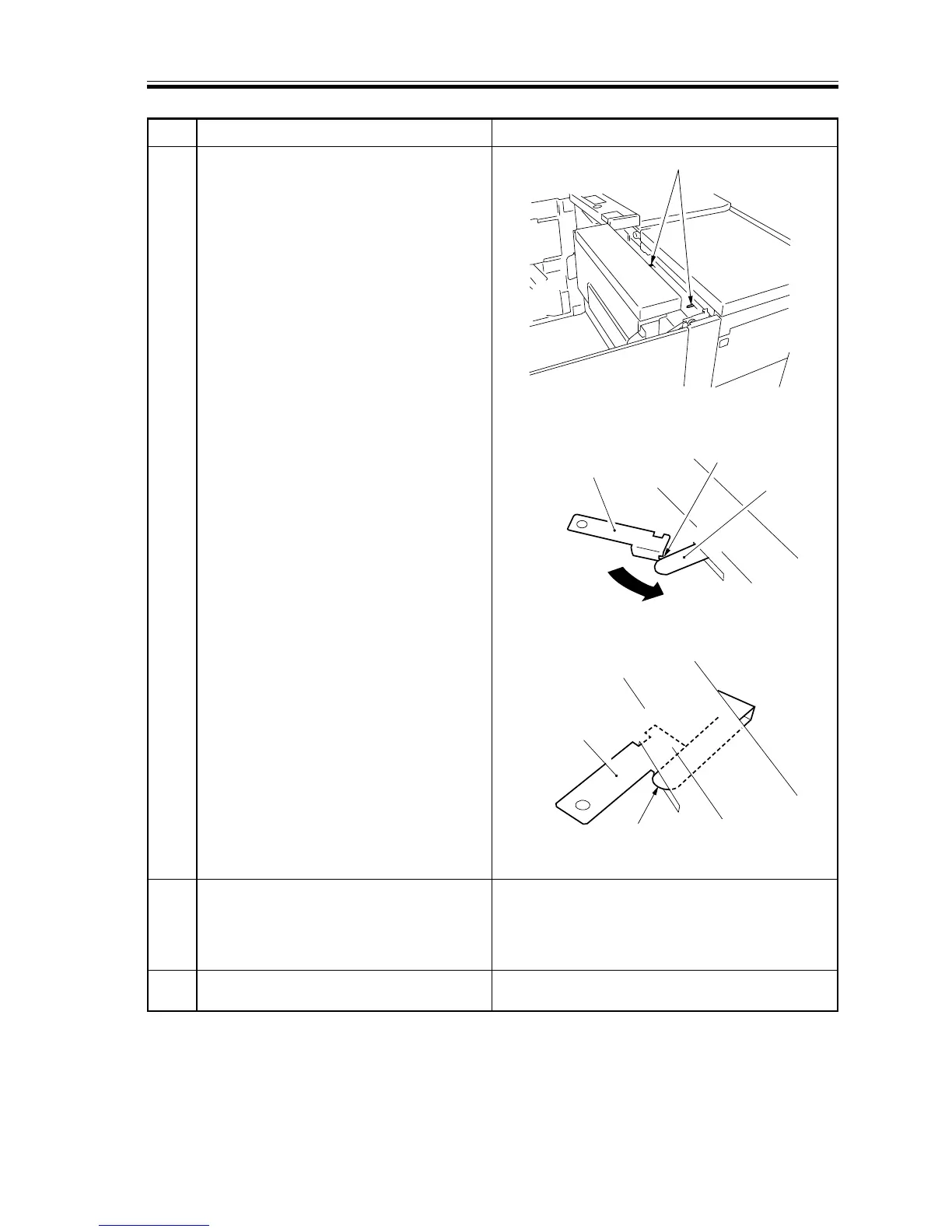

Step Work Remarks
F03-303-17
F03-303-18
Laser shutters (2 pcs.)
Laser shutter
Laser Shutter opening tool
Groove
Laser shutter opening tool
Laser shutter
F03-303-19
33 Install the two laser shutter opening
tools to the two laser shutters.
34 Lift the hopper assembly as far up as it
moves, and manually engage the lock
found in the lower left of the hopper
assembly.
35 Work as instructed under 3.4 “Supplying
Starter.”
To Next Page
