CHAPTER 3 INSTALLATION
3-36
Step Work Remarks
4 If a Card Reader-A1 is to be installed,
connect the relay cable [3] connected in
step 2) to the host copier.
Connect the communication cable [5] to
the host copier.
5 Bundle the communication cable with the
cable clamp [6], and fix the clamp in
place behind the DA unit.

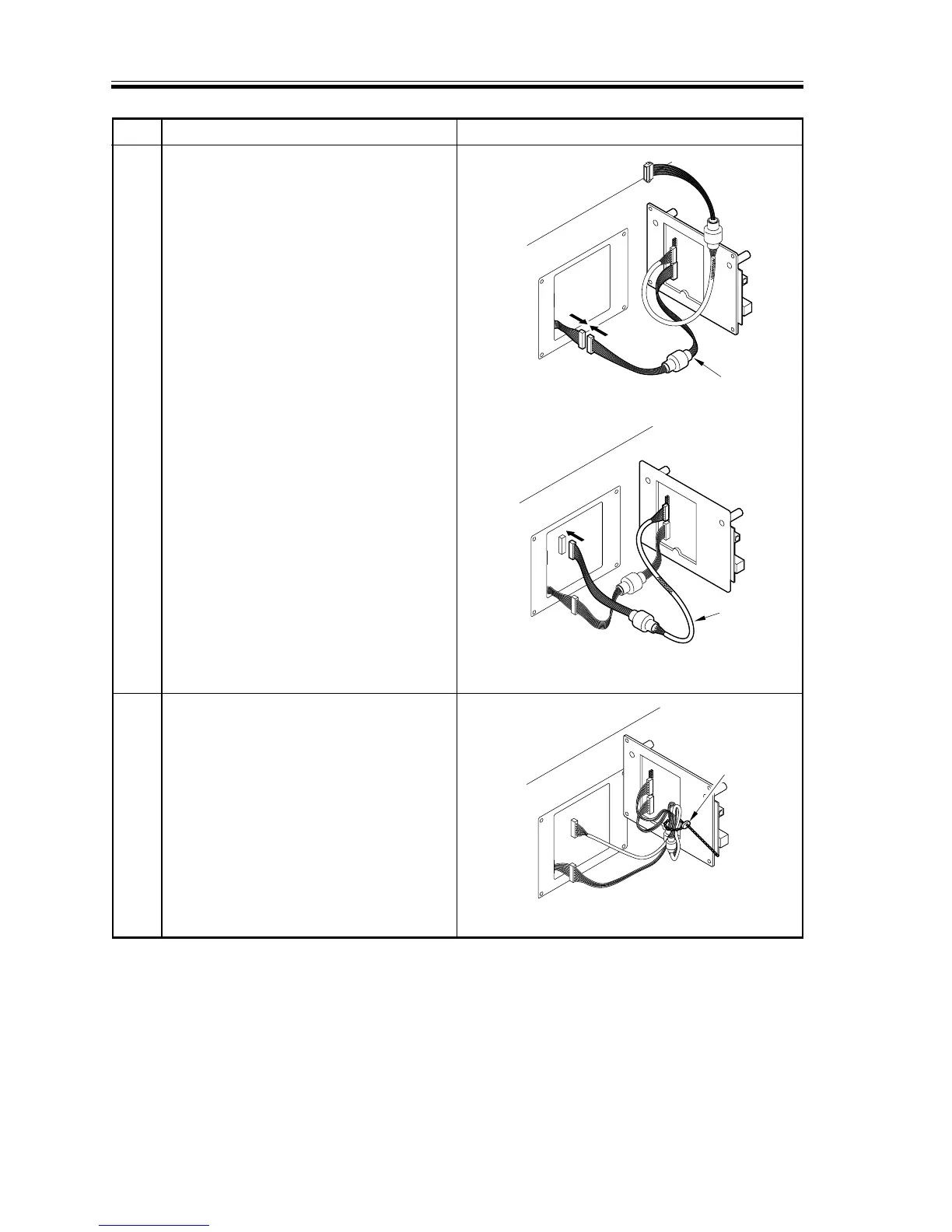

F03-700-04b
[3]
[5]
[6]
F03-700-04c
F03-700-04a
