CHAPTER 5 TROUBLESHOOTING IMAGE FAULTS/MALFUNCTIONS
5-46
1) If you have replaced the laser unit for
C/Bk, position the analog processor
PCB as indicated in F05-208-01.

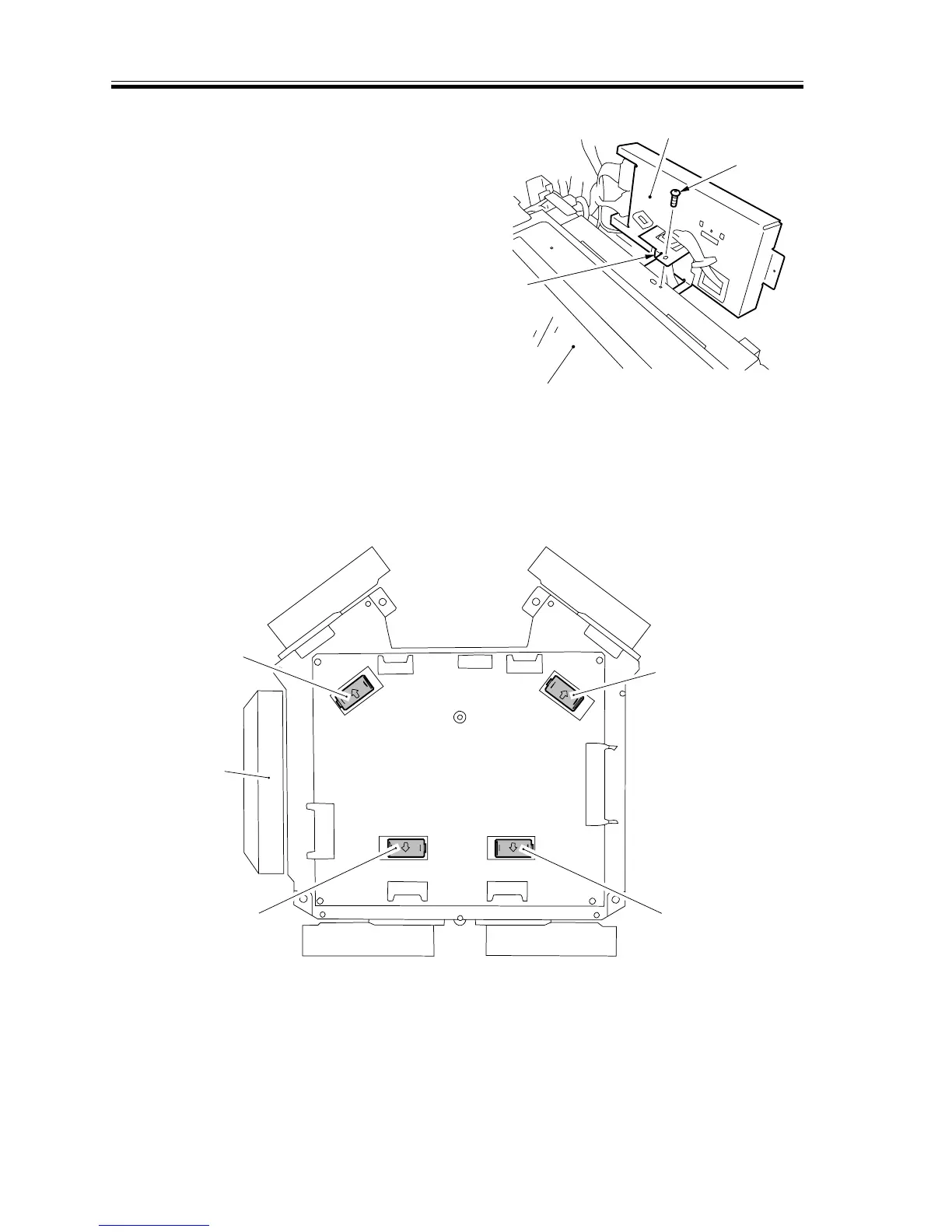

F05-208-01
2) Turn on the power switch.
3) Open the laser power checker inlet
cover.
F05-208-02
Claw
Screw
Analog processor PCB
Copyboard glass
Bk laser unit C laser unit
M laser unit
Y laser unit
Y laser power
checker inlet
cover
M laser power
checker inlet
cover
C laser power
checker inlet
cover
Bk laser power
checker inlet cover
Analog
processor
PCB
