CHAPTER 5 TROUBLESHOOTING IMAGE FAULTS/MALFUNCTIONS
5-48
Making Adjustments

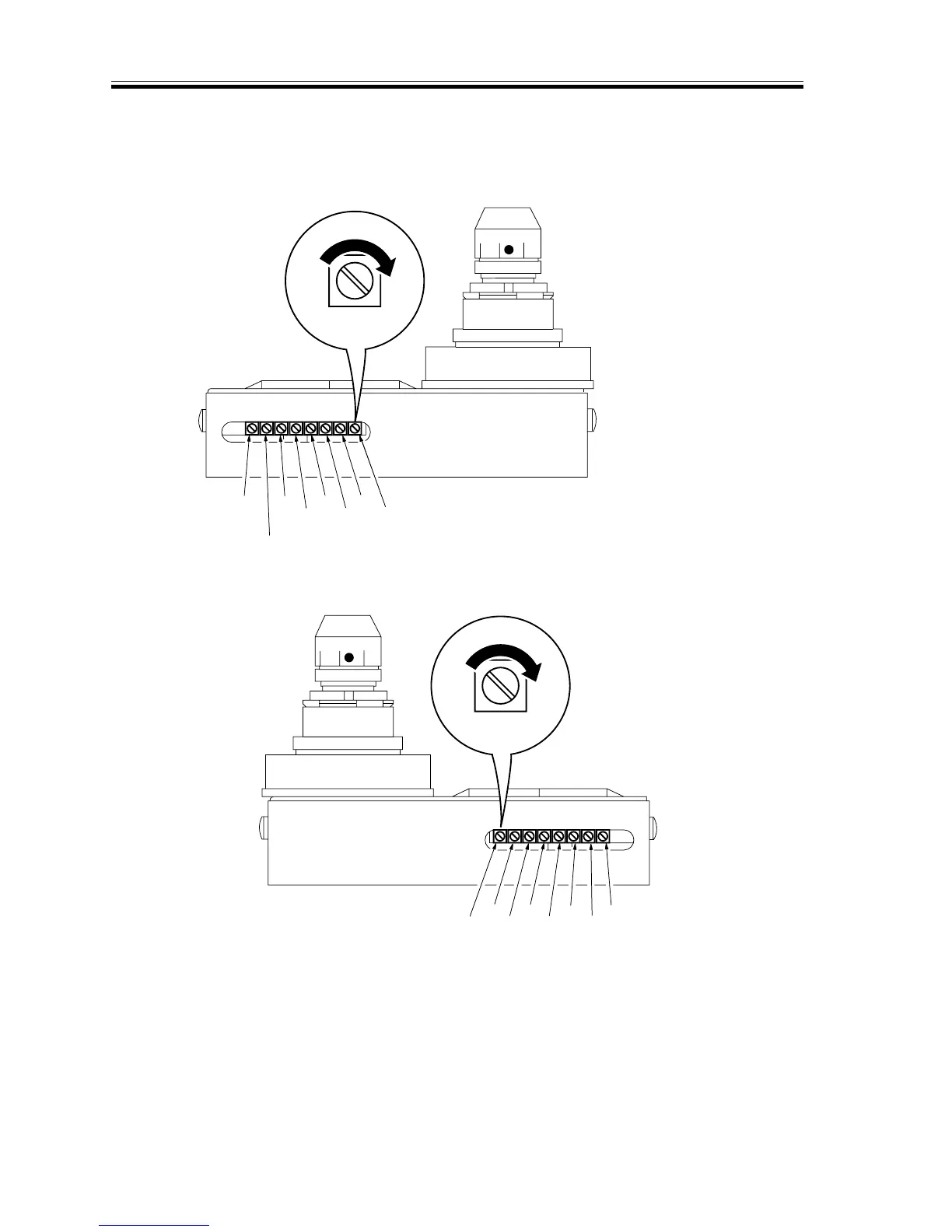

1) Turn the volumes VR1 through VR8 on the laser unit fully clockwise.
F05-208-04 Y/Bk Laser Unit
F05-208-05 C/M Laser Unitm
VR1
VR2
VR3
VR4
VR5
VR6
VR7
VR8
VR1 VR3 VR5 VR7
VR2 VR4 VR6 VR8
VR1 : 1/2 Power
VR2 : Power
VR3 : 800-P00
VR4 : 800-PFF
VR5 : 400-P00
VR6 : 400-PFF
VR7 : 200-P00
266-P00
VR8 : 200-PFF
266-PFF
