CHAPTER 5 TROUBLESHOOTING IMAGE FAULTS/MALFUNCTIONS
5-131
[1]
[2]
[1]
[2]

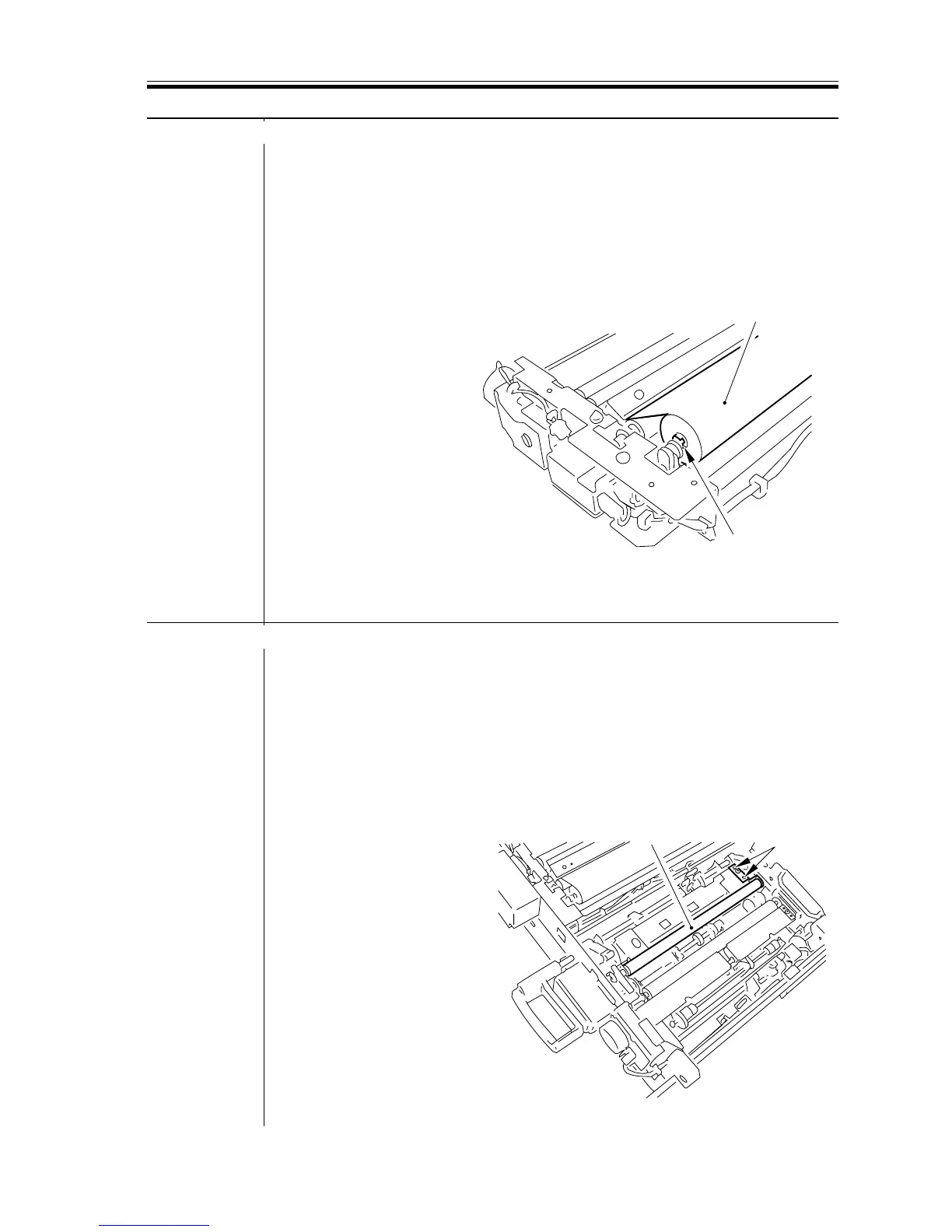

Transfer belt cleaning web
4) Is the web shaft of the transfer belt cleaning web fitted correctly in
the bushing?
If the web shaft [2] is not correctly fitted to the bushing when the
cleaning belt web [1] is mounted, the web will come into uneven
contact with the transfer belt, causing the transfer belt to malfunc-
tion (‘E075’).
NO: Mount the web shaft correctly.
F05-401-05
Oil removing roller
5) Is the oil removing roller mounted correctly?
If the oil removing roller [1] is fixed in position overriding the em-
boss [2] next to the fixing screw, the roller will come into uneven
contact with the transfer belt, causing the transfer belt to malfunc-
tion (‘E075’).
NO: Mount the oil removing roller correctly.
6) Is the surface of the roller peeling?
YES: Replace the oil removing roller.
F05-401-06
