CHAPTER 5 TROUBLESHOOTING IMAGE FAULTS/MALFUNCTIONS
5-132

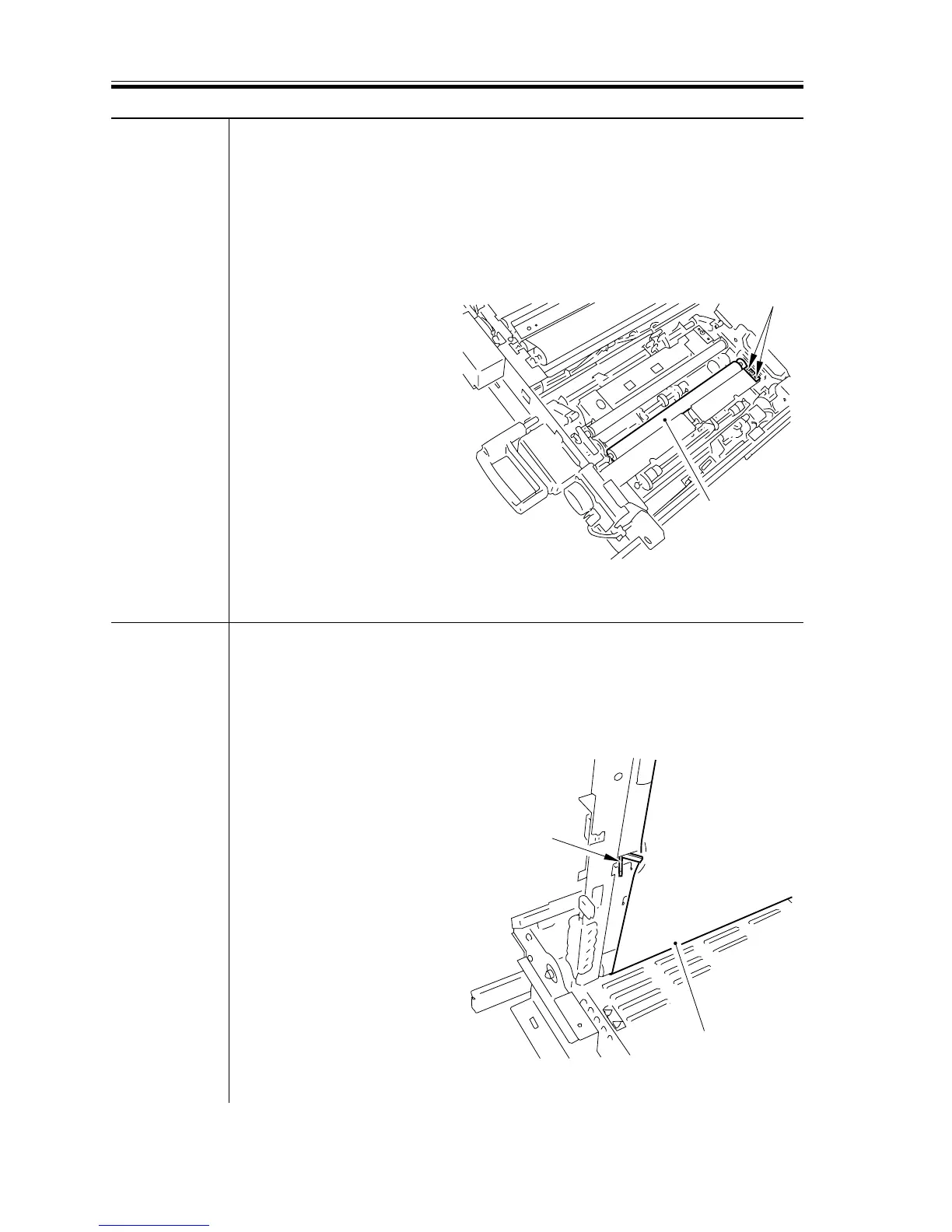

Polishing roller
7) Is the polishing roller mounted normally?
If the polishing roller [1] is fixed in position overriding the emboss
[2] next to the fixing screw, the roller will come into uneven contact
with the transfer belt, causing the transfer belt to malfunction
(‘E075’).
NO: Mount the polishing roller correctly.
F05-401-07
Transfer belt
8) Is the transfer belt overriding the edge sensor?
Take care not to mount the transfer belt [1] overriding the edge
sensor [2]; otherwise, the transfer belt can malfunction (‘E075’).
YES: Mount the transfer belt correctly.
F05-401-08
[1]
[2]
[1]
[2]
