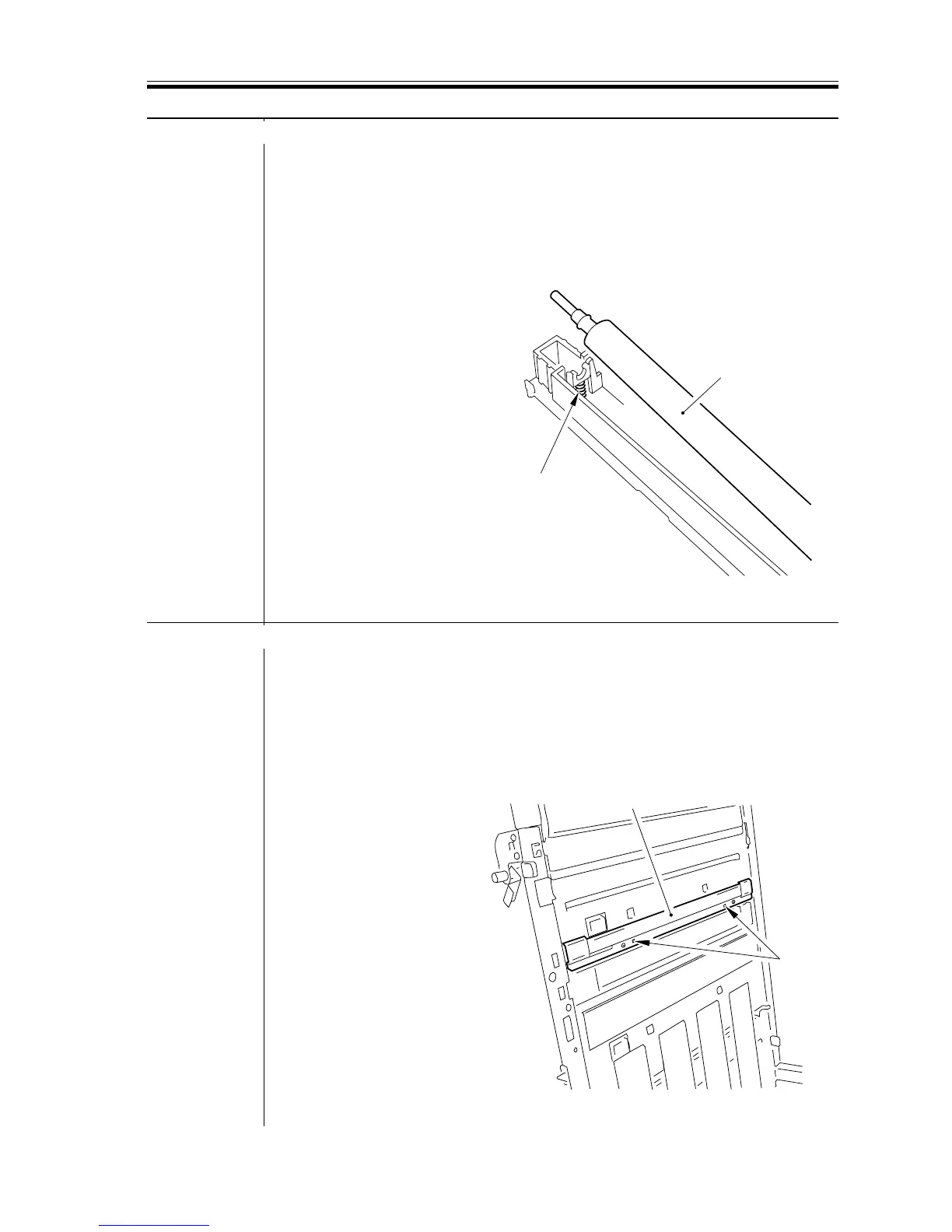

Internal static eliminating roller
9) Is the internal static eliminating roller mounted correctly?
If the internal static eliminating roller [1] is secured in position with
the push-on spring [2] detached, the roller will come into uneven
contact with the transfer belt, causing the transfer belt to malfunc-
tion (‘E075’).
NO: Mount the internal static eliminating roller correctly.
F05-401-09
Transfer belt back cleaning member
10) Is the transfer belt back cleaning member mounted correctly?
If the transfer belt back cleaning member [1] is secured in place
overriding the emboss [2] next to the fixing screw, the contact with
the transfer belt will be uneven, causing the transfer belt to mal-
function (‘E075’).
NO: Mount the transfer belt face cleaning member correctly.
F05-401-10
[1]
[2]
[1]
[2]
