CHAPTER 5 TROUBLESHOOTING IMAGE FAULTS/MALFUNCTIONS
5-176
Notation Name
ATR C ATR sensor (C)
ATR M ATR sensor (M)
ATR Y ATR sensor (Y)
BD C BD sensor (C)
BD M BD sensor(M)
BD Y BD sensor (Y)
BD K BD sensor (Bk)
PTS 1 Paper thickness sensor
SALT C SALT sensor (C)
SALT M SALT sensor (M)
SALT Y SALT sensor (Y)
SALT K SALT sensor (Bk)
Notation Name
SEU 1 Cassette 1 paper length sensor
SEU 2 Cassette 2 paper length sensor
SVR 1 Cassette 1 paper width sensor
SVR 2 Cassette 2 paper width sensor
TS 1 Toner level sensor (upper) C
TS 2 Toner level sensor (upper) M
TS 3 Toner level sensor (upper) Y
TS 4 Toner level sensor (upper) Bk
TS 5 Toner level sensor (lower) C
TS 6 Toner level sensor (lower) M
TS 7 Toner level sensor (lower) Y
TS 8 Toner level sensor (lower) Bk

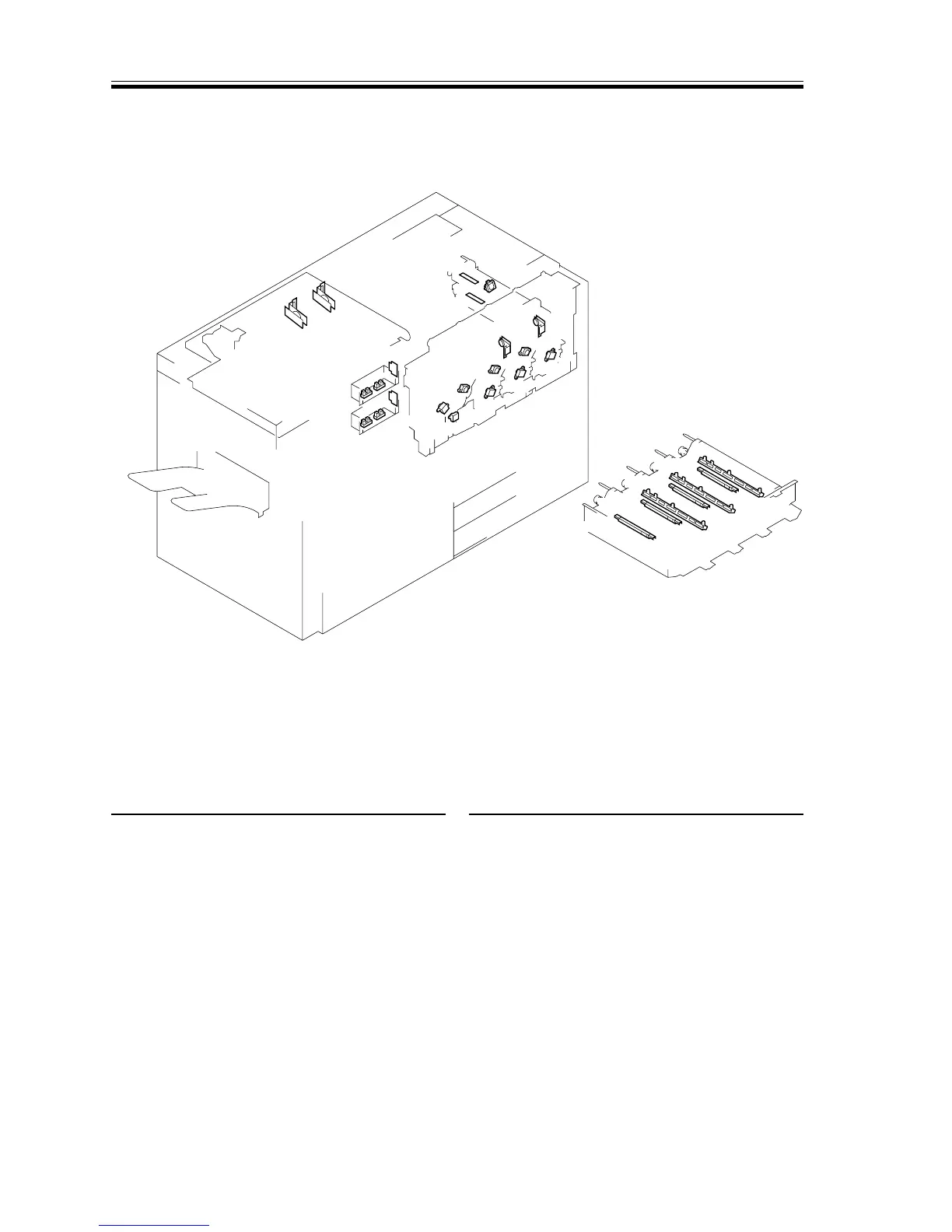

F05-601-02
T05-601-02
[BD M]
[BD C]
ATR C
ATR M
ATR Y
SALT K
SALT Y
SALT M
SALT C
PTS1
TS1
TS2
TS3
[OHP LED]
[BD Y]
[BD K]
[OHP SENSOR]
TS4
SEU1
SVR1
SVR2
SEU2
TS8
TS7
TS6
TS5
