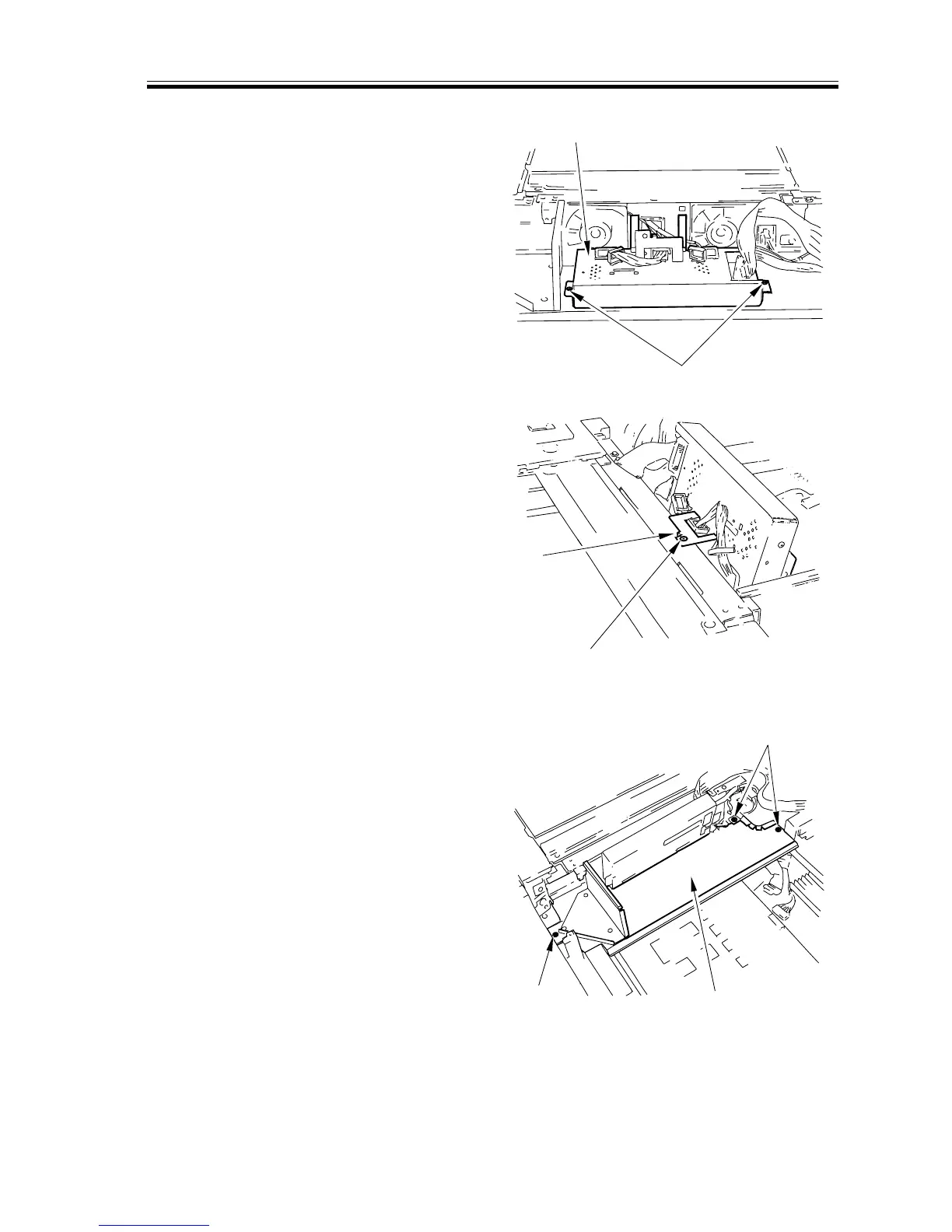

3) Remove the two screws [3], and detach
the analog processor PCB [4]; then, se-
cure it on the hook hole [5] with a
screw [6].
[4]
[3]
F02-305-03
[5]
[6]
F02-305-04
4) Remove the three screws [7], and detach
the duct plate [8].
[7]
[8]
[7]
F02-305-05
