COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
SERVICE MODE
S-49
Copyboard glass
Original
RX,
DX
0~99
RY,
DY
0~99

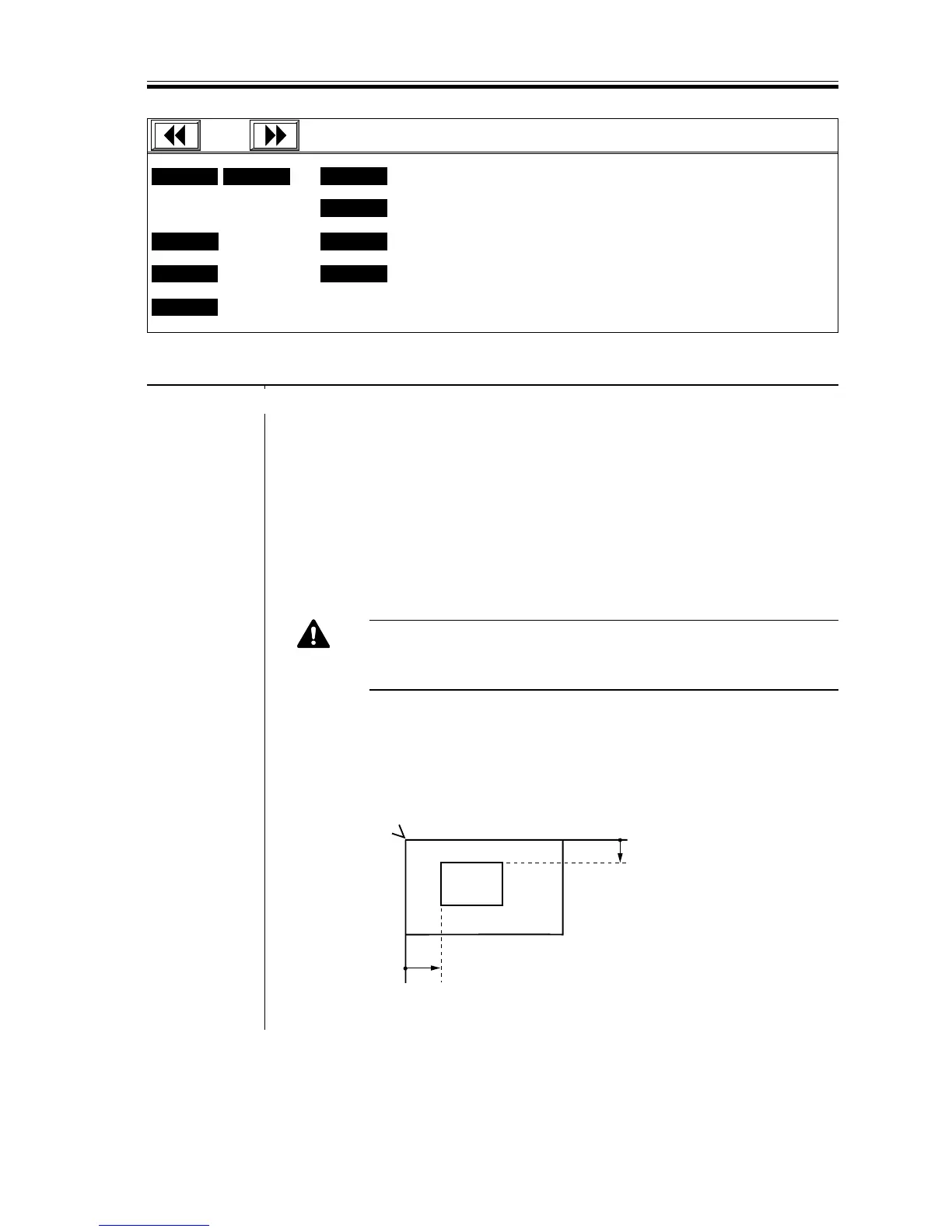

RFADJ-RX RFADJ-RY RFADJ-DX RFADJ-DY
Adjusts registration (with RF in use).
Corrects registration when originals are picked up from the RF.
Corrects in relation to main scanning direction →CCD read start position.
Corrects in relation to sub scanning direction →original read start timing.
RX → For correction in sub scanning direction when pick-up is from the
RDF tray.
*1
RY → For correction in main scanning direction when pick-up is from the
RDF tray.
If RY=0 (initial value), the CCD starts reading at a point 2 mm
away from the index for A4 and 11 mm away from the index
for LTR.
DX →For correction in sub scanning direction when pick-up is from the
manual feeding tray (feeding assembly).
DY → For correction in main scanning direction when pick-up is from the
manual feeding tray (feeding assembly).
F00-300-12
<M> <S> <R> <P> <F>
DISP COUNTER
OPTION
TEST
RFADJ-RX
x
RFADJ-RY
x
RFADJ-DX
x
RFADJ-DY
x
x.x mm
x.x mm
x.x mm
x.x mm
2/2
FUNC
ADJUST
ED/RF
F00-300-11
