CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

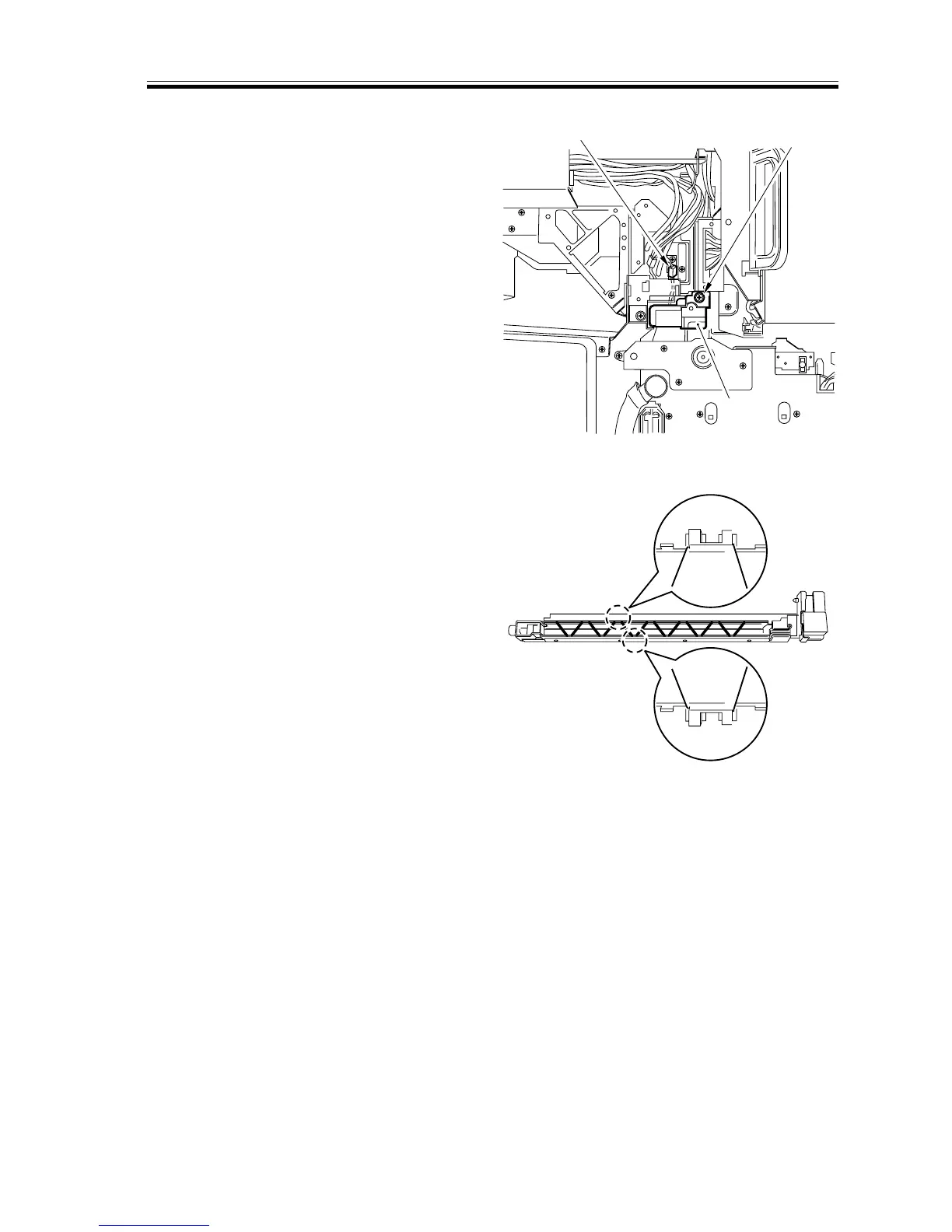

3) Remove the screw [3], and disconnect
the connector [4]; then, detach the sepa-
ration charging assembly [5].
[3]
[4]
[5]
02-405-04
b-2. Routing the Gut Wire
1) Route the gut wire as shown.
F02-405-05
