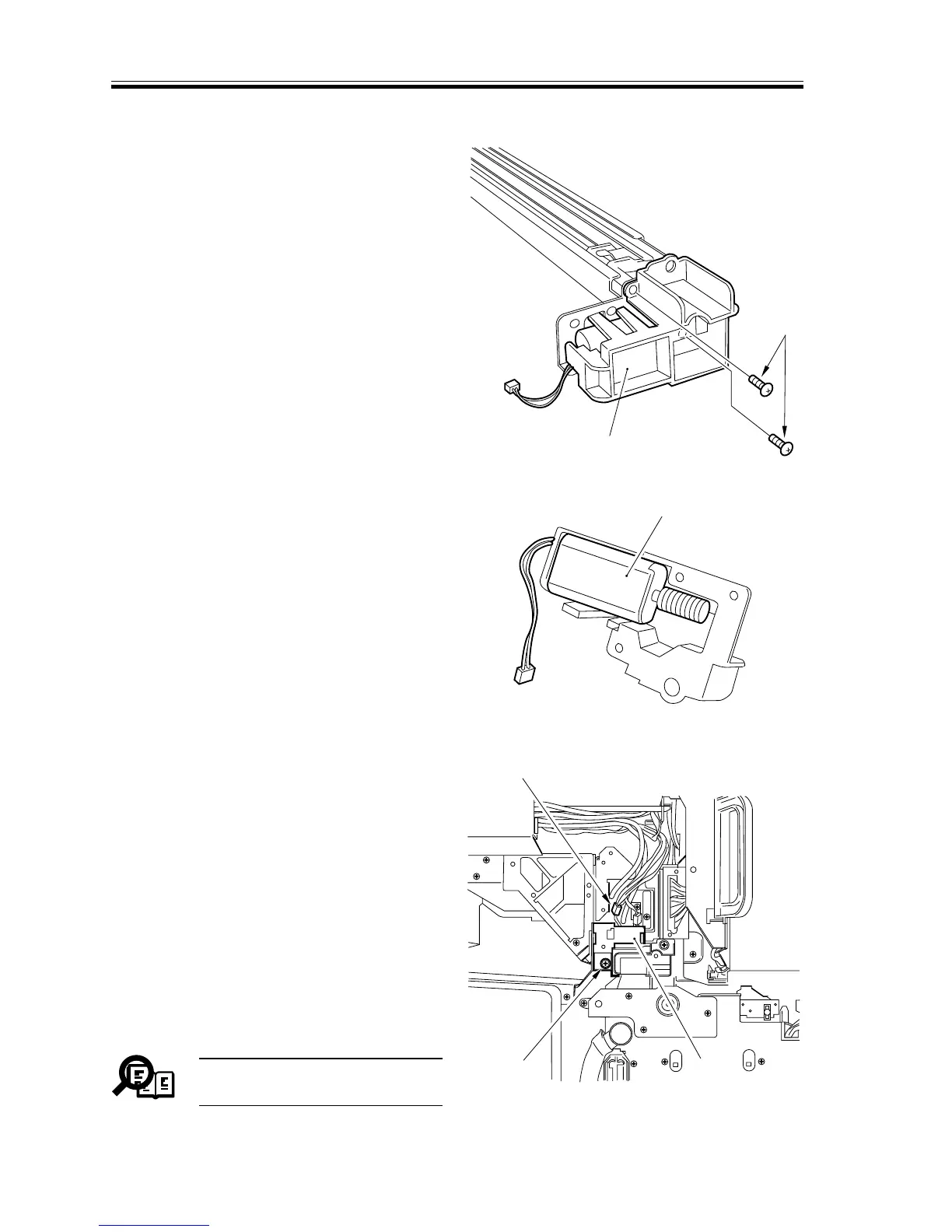

b-3. Removing the Separation Charging Assembly Motor
1) Remove the separation charging assem-
bly. (See b-1. “Removing the Separation
Charging Assembly.”)
2) Remove the two screws [1], and detach
the motor mounting base [2].
[2]
[1]
F02-405-06
3) Remove the separation charging assem-
bly motor [3]. (The motor is snapped in
place.)
[3]
F02-405-07
c-1. Removing the Pre-Fixing Charging Assembly
1) Open the front cover.
2) Remove the hopper unit left cover.
3) Pull out the pre-fixing duct. (See 7.6.1 j
“Removing the Pre-Fixing Filter”.)
4) Remove the screw [1], and disconnect
the connector [2]; then, detach the pre-
fixing charging assembly [3].
[1]
[2]
[3]
F02-405-08
Memo
To detach, pull it to the front
slightly, and shift it to the left.
