2-53
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

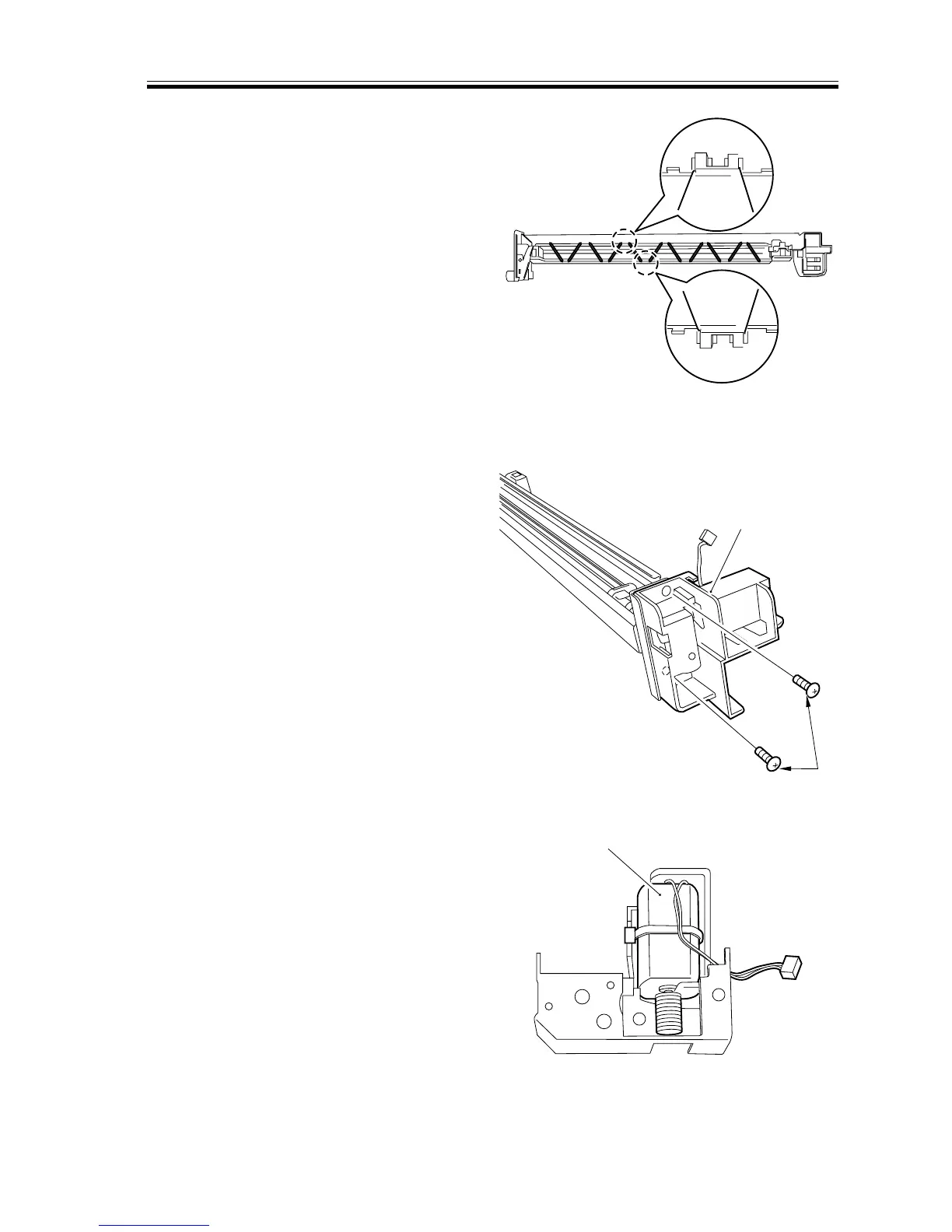

c-2. Removing the Gut Wire
1) Route the gut wire as shown.
F02-405-09
c-3. Removing the Pre-Fixing Charging Assembly Motor
1) Remove the pre-fixing charging assem-
bly. (See c-1. “Removing the Pre-Fixing
Charging Assembly.”)
2) Remove the two screws [1], and detach
the motor mounting base [2].
[1]
[2]
F02-405-10
3) Remove the motor [3]. (The motor is
snapped in place.)
[3]
F02-405-11
