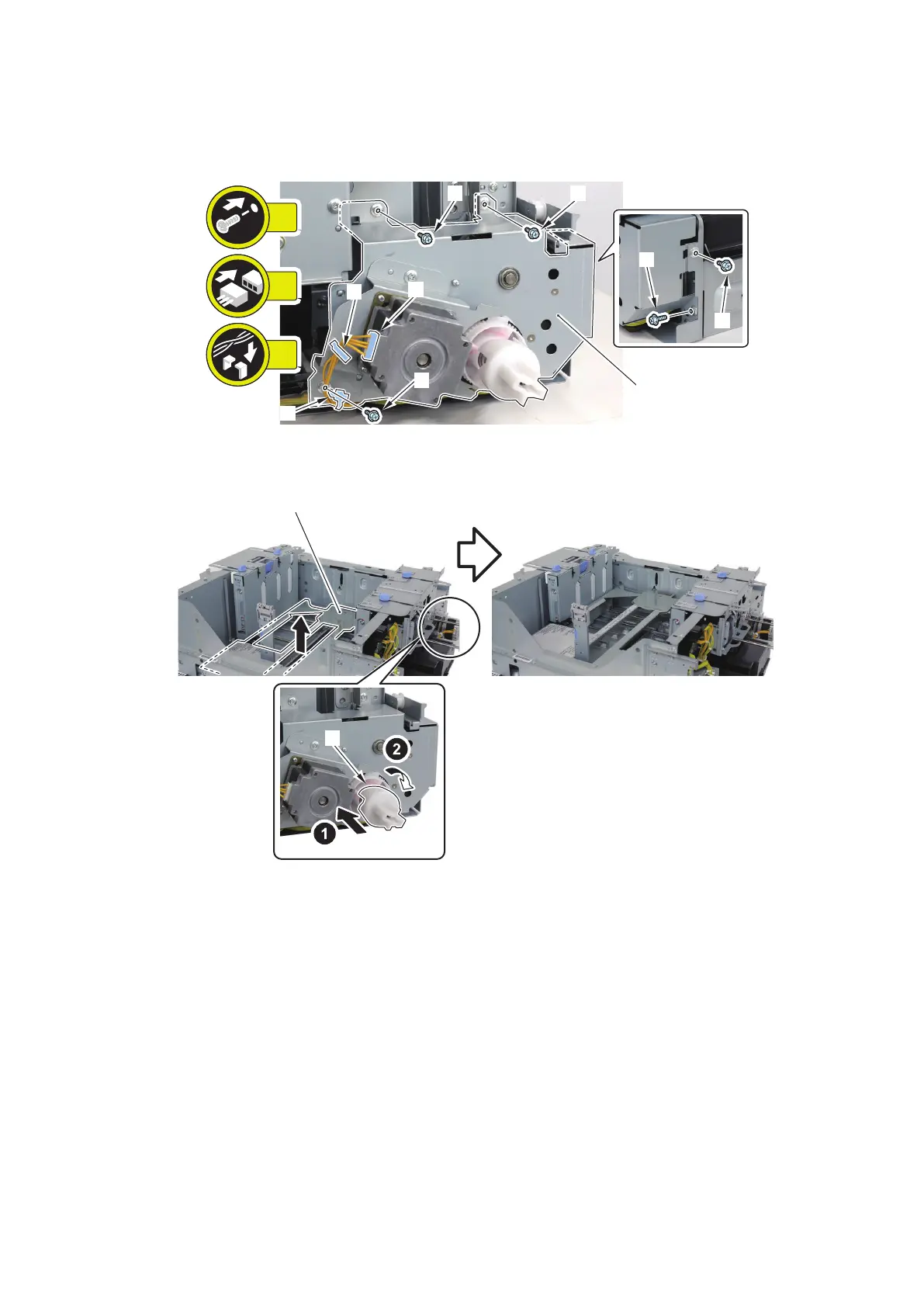

10. Install the Drive Unit [1].
• 5 Screws [2]
• 1 Reuse Band [3]
• 1 Connector [4]
• 1 Wire Saddle [5]
[1]
[5]
[3]
[2]
[4]
[2]
[2]
[2]
[2]
5x
1x
2x
11. Turn the Coupling [1] in the arrow direction while pushing it, raise a lifter plate [2] by around 10cm.
12. Install the Deck Unit.
13. Install the Pickup Unit.
14. Install the removed Covers.
4. Parts Replacement and Cleaning
