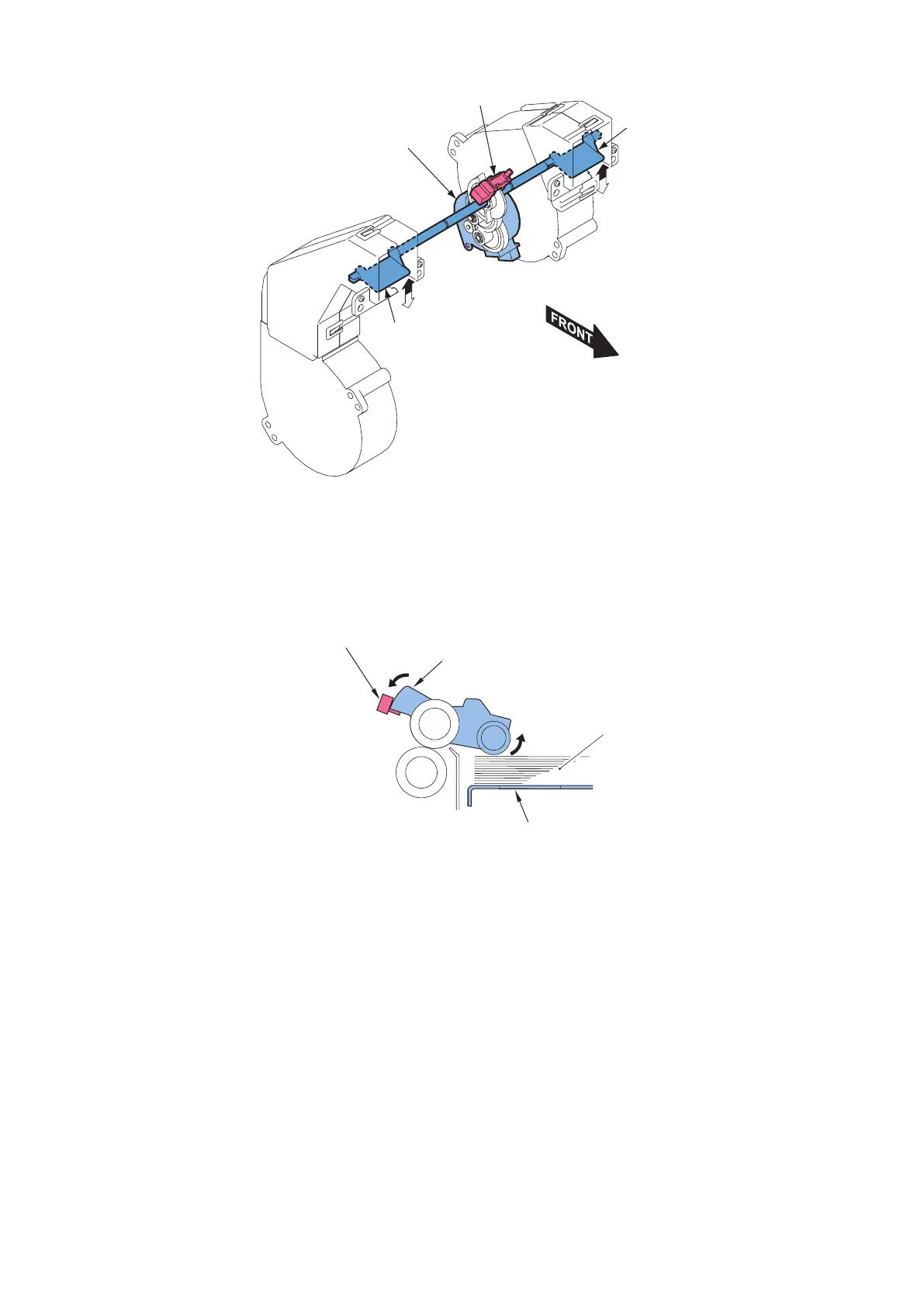

Swing Motor
（M102/ M/202/ M302）
Swing HP Sensor
（S114/ S215/ S315）
Shutter
Shutter
■ Paper Surface Detection Control
The Paper Surface Sensor (S106/S206/S306) mounted at the Pickup Unit of each deck is used to detect the paper surface.
When the Detecting Flag of the Pickup Roller Holder is pushed up by the top surface of paper with the upward movement of the
lifter, the paper surface detection sensor detects it and the lifter stops to keep the top surface of paper at the pickup position.
Paper Surface Sensor
(S106/ S206/ S306)
Detection Flag
Paper
Lifter
