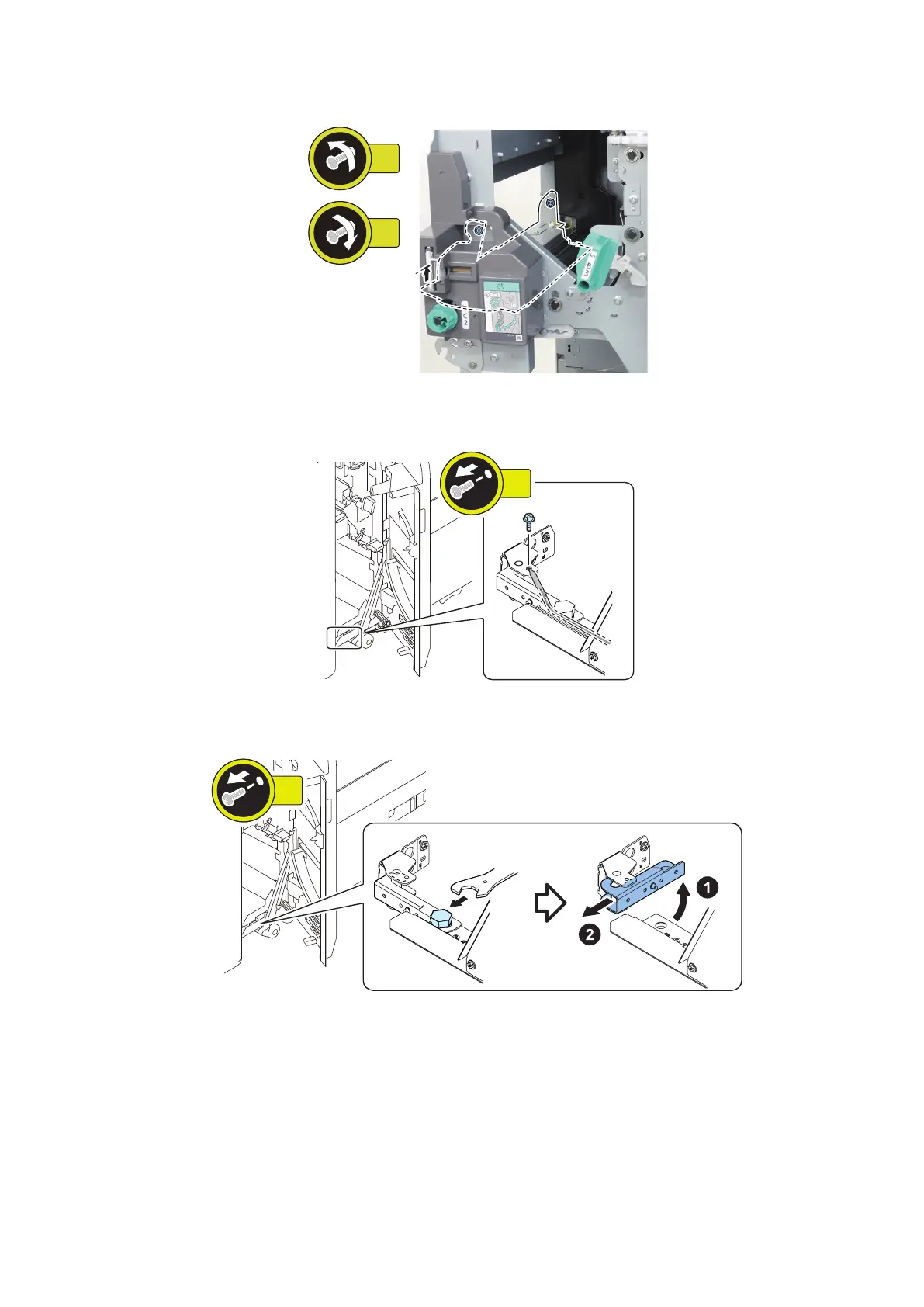

14. Loosen the Fixing Screws securing the Delivery Guide, lift the Delivery Guide until it stops, and then tighten the
Fixing Screws.
2x
2x
15. Remove the Shunt Cable.
• 1 Screw
1x
16. Remove the Front Latch Unit at the front.
• 1 Bolt
1x
4. Parts Replacement and Cleaning
54
