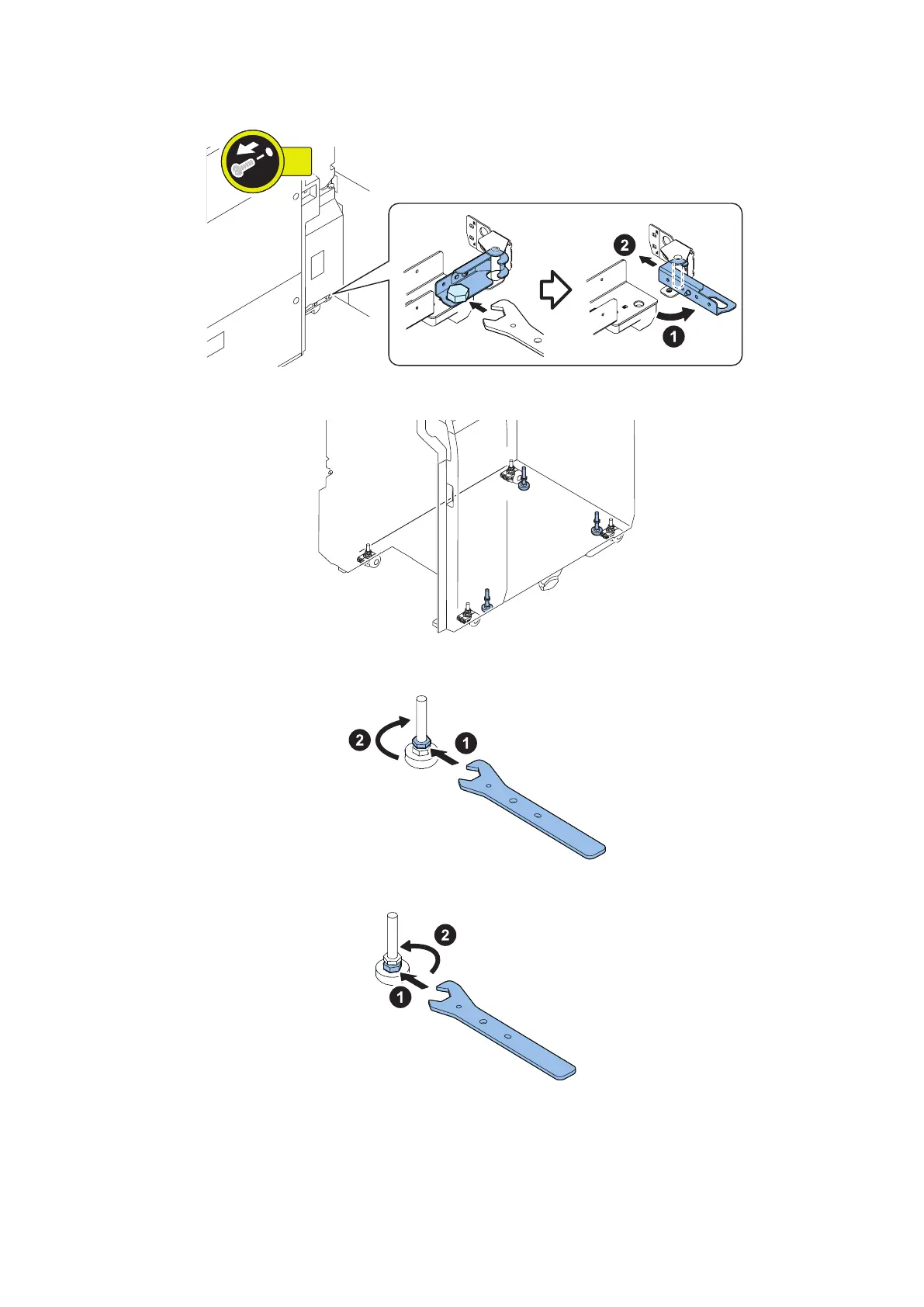

17. Remove the Latch Unit at the rear.
• 1 Bolt
1x
18. Raise the 3 Adjusters from the floor.
19. Using the Wrench, loosen the Upper Nut on the adjuster.
20. Turn the Lower Nut on the adjuster using the Wrench to raise the adjuster from the floor.
4. Parts Replacement and Cleaning
55
