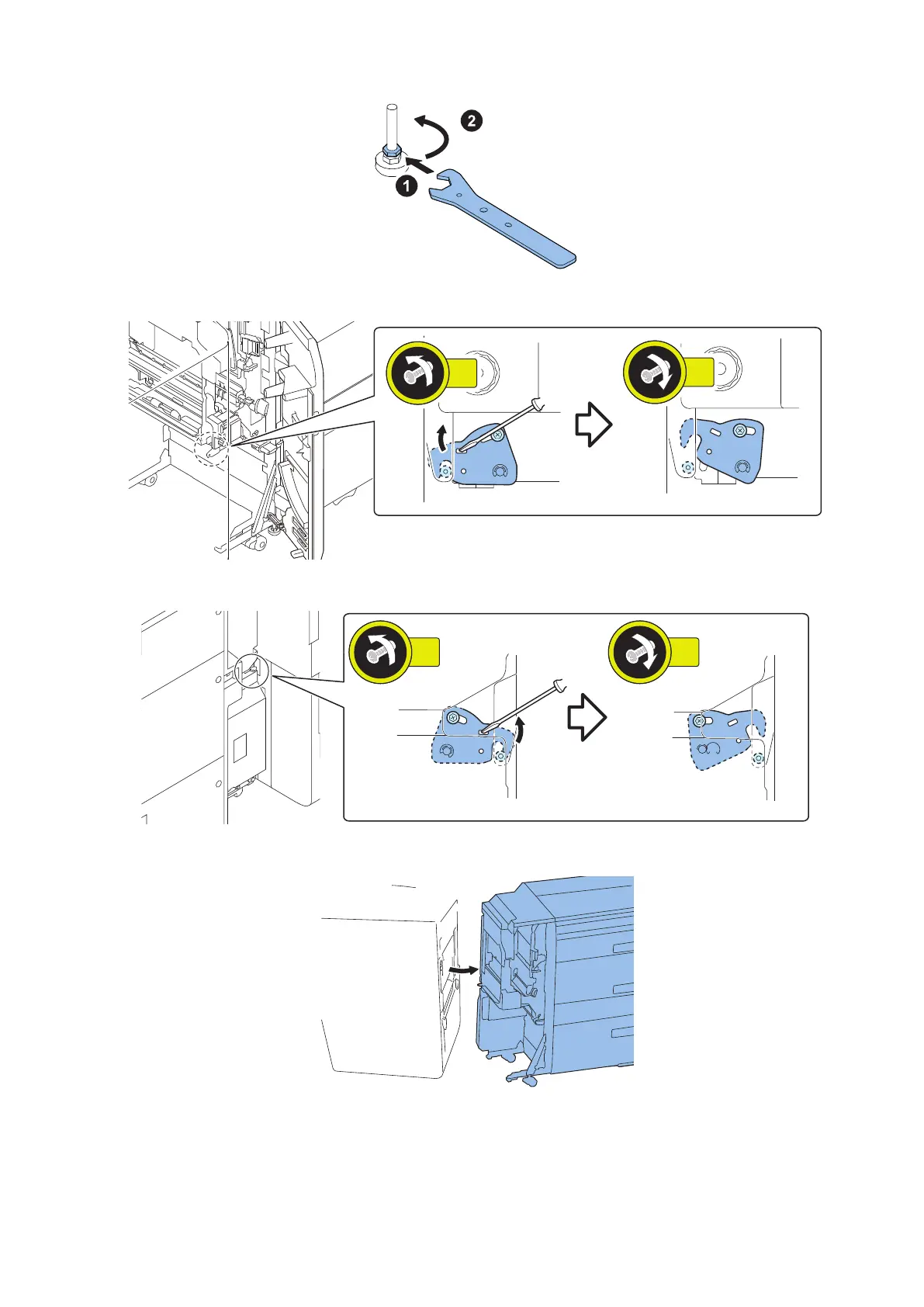

21. Tighten the loosened nut of the upper part using the Wrench.
22. Loosen the Fixing Screw of the Latch Plate at the front. Release the Latch Plate and tighten the Fixing Screw.
1x
1x
23. Loosen the Fixing Screw of the Latch Plate at the rear. Release the Latch Plate and tighten the Fixing Screw.
1x
1x
24. Separate this equipment from the host machine.
4. Parts Replacement and Cleaning
