2. Remove the Right Cover of the target Deck.“Removing the Deck Right Upper Cover” on page 83, “Removing the
Deck Right Middle Cover” on page 82, “Removing the Deck Right Lower Cover” on page 83
NOTE:
When installing the Secondary Multi-drawer Paper Deck, the Stack Bypass or the POD Deck Lite C/XL, remove the Rear Cover
of the target Deck.
■ Procedure
NOTE:
The removal procedure of the upper deck is described below. The procedure of the middle and lower decks is the same.

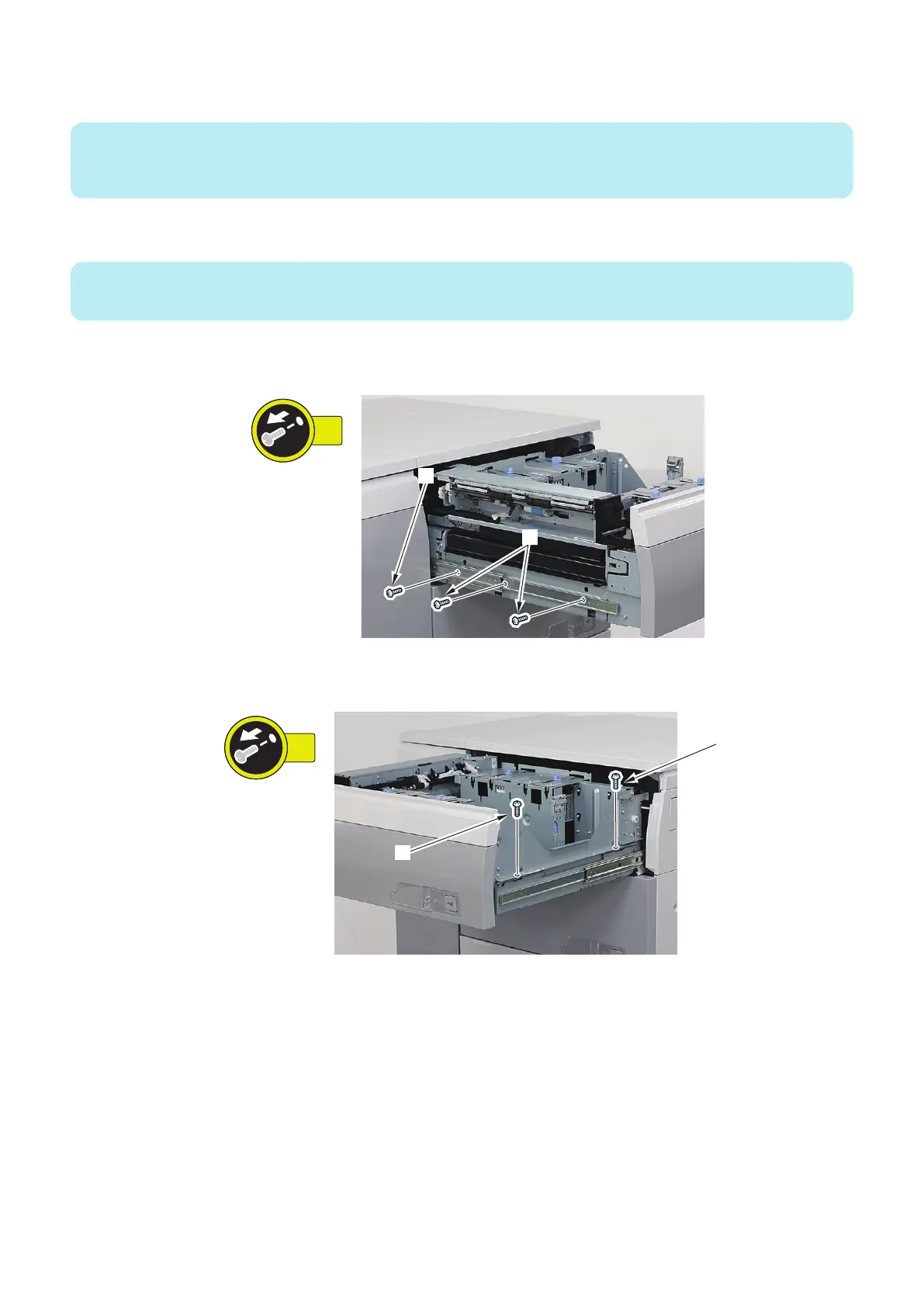

1. Remove the Screws [1] securing the left side of the deck unit.
• 3 Screws (Black) [1]
3x
[1]
[1]
2. Remove the Screws [1] securing the right side of the deck unit.
• 2 Screws (Black) [1]
[1]
[1]
2x
