10.

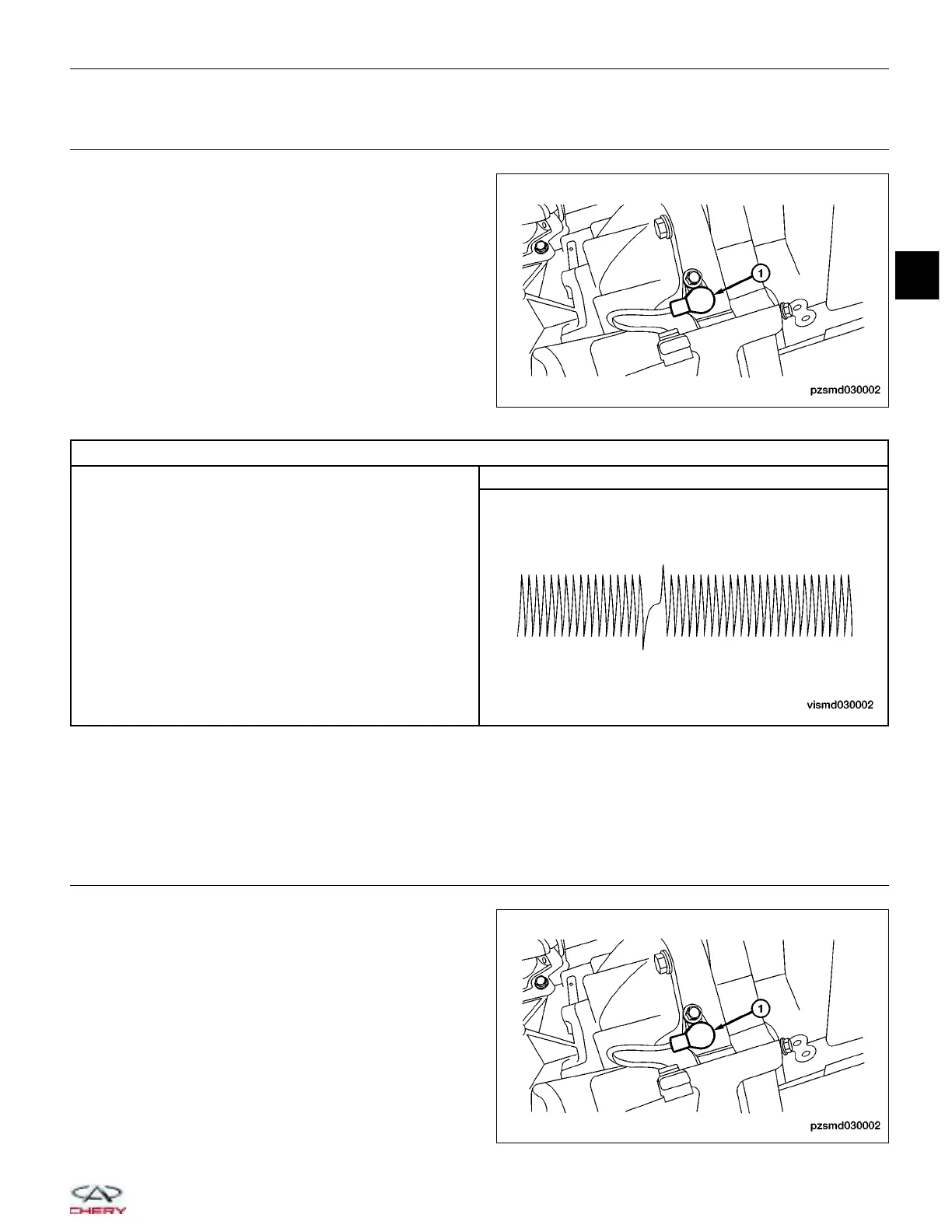

CHECK CKP SENSOR SIGNAL WAVE PATTERN
• Check signal between terminal 1 and ground, termi-
nal 2 and ground in CKP sensor (1) connector
E-006 terminal side, with the engine running.
CKP SENSOR SIGNAL OUTPUT
WITH ENGINE ANALYZER (KES-200)
CKP SENSOR SIGNAL
Is the CKP output signal normal?
Yes
>> Go to step 16.
No
>> Go to the next step.
11.
CHECK CKP SENSOR
• Remove the CKP sensor (1).
• Inspect and clean the CKP sensor and mounting
area for any condition that would result in an incor-
rect signal, such as damage, foreign material, or
excessive movement.
Is the sensor mounting area OK?
Yes
>> Go to the next step.
No
>> Repair or replace the sensor as
necessary.
DIAGNOSIS & TESTING
PZSMD030002
PZSMD030002
03
03–39
Chery Automobile Co., Ltd.
