Chery A1 2009 User Manual

2.

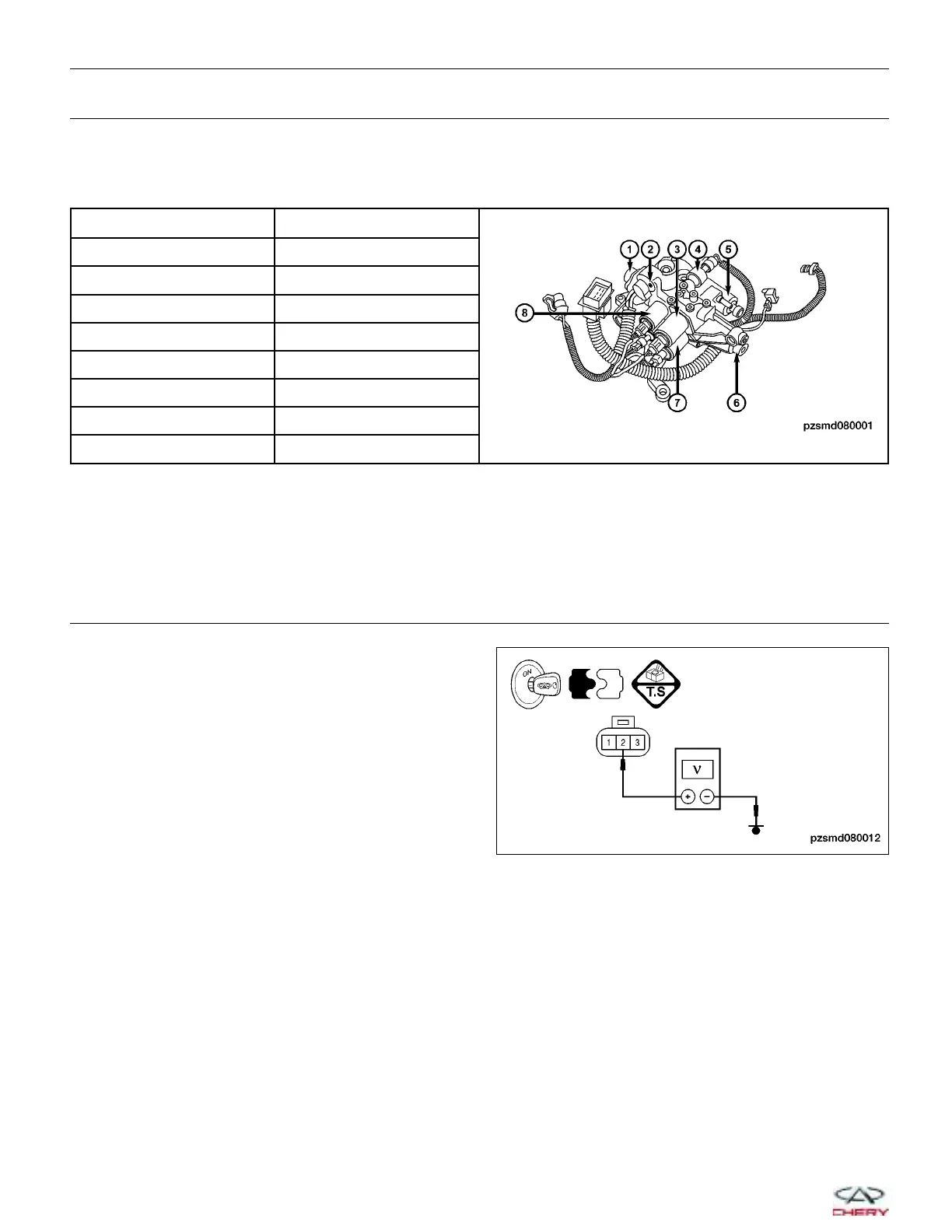

CHECK SHIFT POSITION SENSOR ELECTRICAL CONNECTOR
• Stop the vehicle and turn ignition switch off.
• Disconnect the shift position sensor electrical connector P-007 (2).
• Inspect the electrical connector for damage.
NUMBER SOLENOID/SENSOR
1 Gear position sensor
2 Shift position sensor
3 Clutch solenoid valve
4 Hydraulic pressure sensor
5 Gear solenoid valve
6 Clutch position sensor
7 Gear solenoid valve
8 Shift solenoid valve
Is the electrical connector OK?
Yes
>> Go to the next step.
No
>> Repair or replace the electrical connector as necessary.
3.
CHECK SHIFT POSITION SENSOR POWER SUPPLY
• Turn ignition switch on.
• Check power supply between terminal 2 of the shift
position sensor connector P-007, terminal side and
ground.
• 5 V should exist.
Is the check result normal?
Yes
>> Go to the next step.
No
>> Repair or replace the circuit for an open,
short to power or short to ground.
DIAGNOSIS & TESTING
PZSMD080012
08–88
Chery Automobile Co., Ltd.
