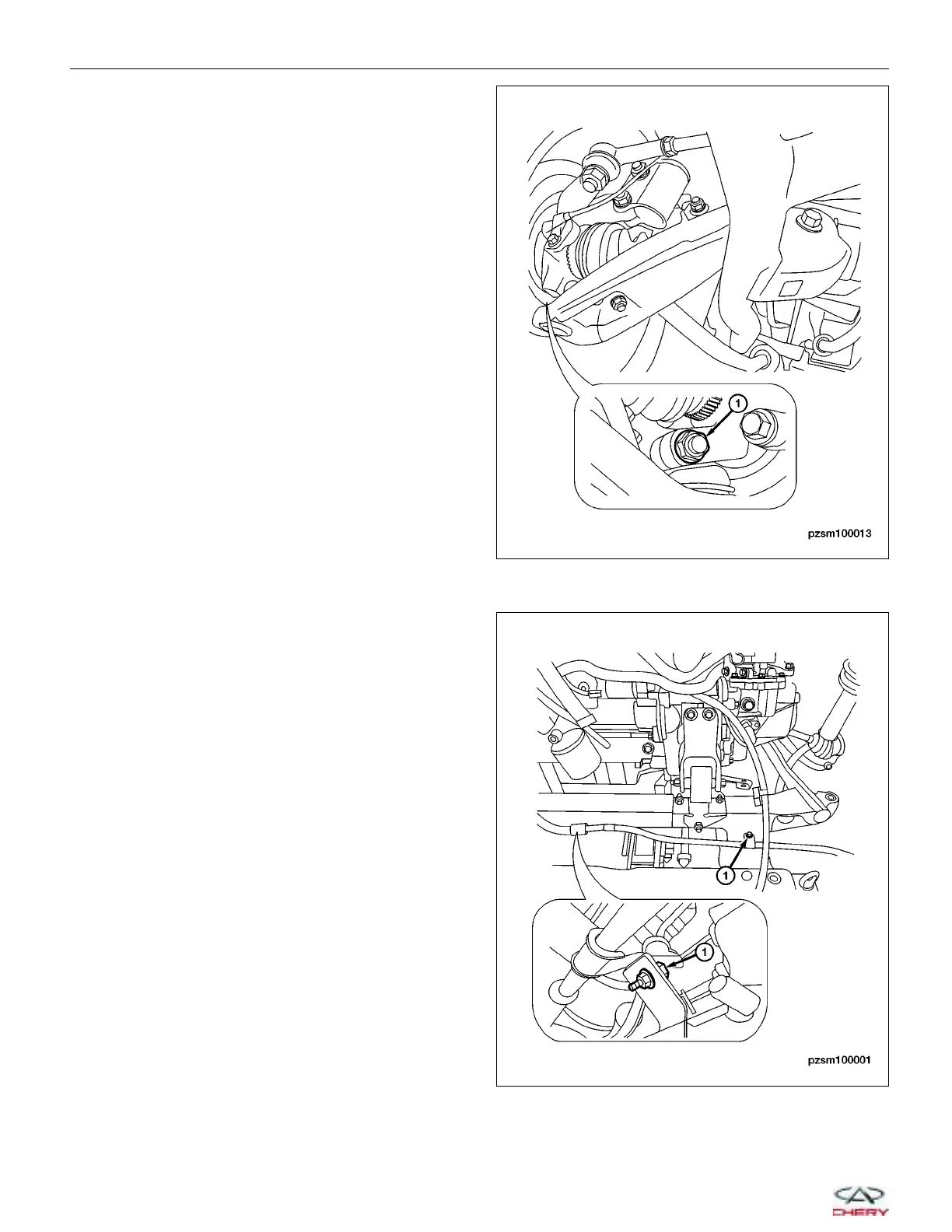

11. Remove the pinch bolt (1) from the steering

knuckle.

(Tighten: Steering knuckle pinch bolt to 110 ± 10

N·m)

12. Raise and support the vehicle.

13. Remove the A/C pipe bracket retaining bolts (1) on

the sub-frame (See Suction Line Removal & Instal-

lation in 13 Heating And Air Conditioning).
