5. Ensure the cushion stopper mark (1) is in line with
the mark on the strut.
6. Install the cushion block and pull the piston rod to the bottom.
7. Align the coil spring on the bottom spring holder (1)
(the end of the spring should be indexed in the
spring pocket).
8. Install the upper spring holder with the index posi-
tion of 180° angle between the punched hole and
the spring strut mounting position (1).
9. Install the upper spacer and bearing.
10. Install the strut rod nut to the strut rod.
UNIT REPAIR

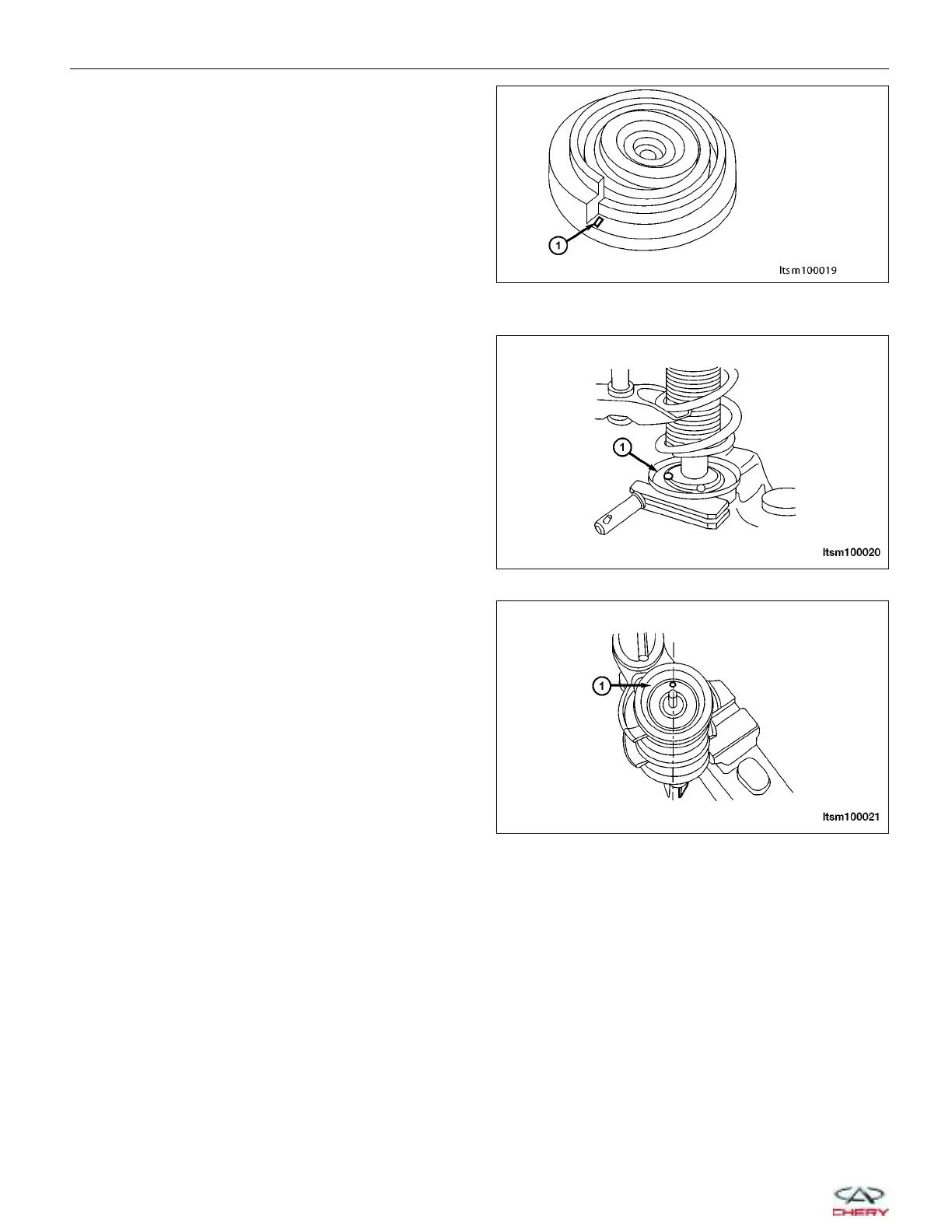

LTSM100019
LTSM100020
LTSM100021
10–26
