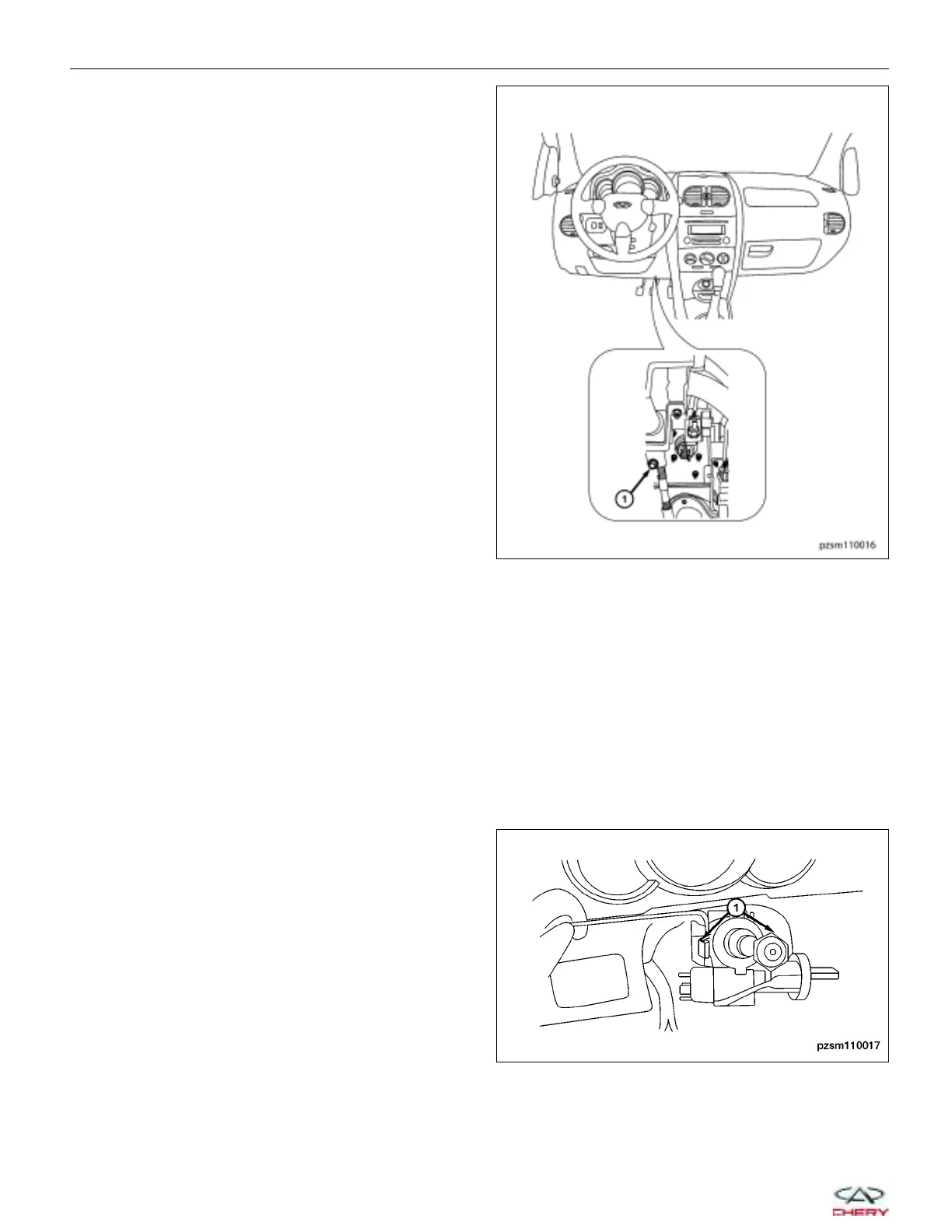

14. Remove the intermediate shaft lock bolt (1) from
the steering gear.
(Tighten: Intermediate shaft lock bolt to 25 ± 3
N·m)
15. Remove the steering column assembly.
16. Installation is in the reverse order of removal.
Installation Notes:
• Check the steering shaft and universal joint for damage or wear. Check the clearance of universal joint, and
replace if necessary.
• Check the steering column seal cover. The distance to the groove button should be less than 1.00 mm, replace
if necessary.
• Verify the airbag system is operating properly after the repair is complete.
• When installing the spiral cable, slowly wind the spiral cable to the end of its travel and then unwind the spiral
cable two and a half turns.
Disassembly
1. Remove the two ignition switch retaining bolts (1)
with inner hex wrench.
ON-VEHICLE SERVICE
PZSM110016
PZSM110017
11–18
Chery Automobile Co., Ltd.
