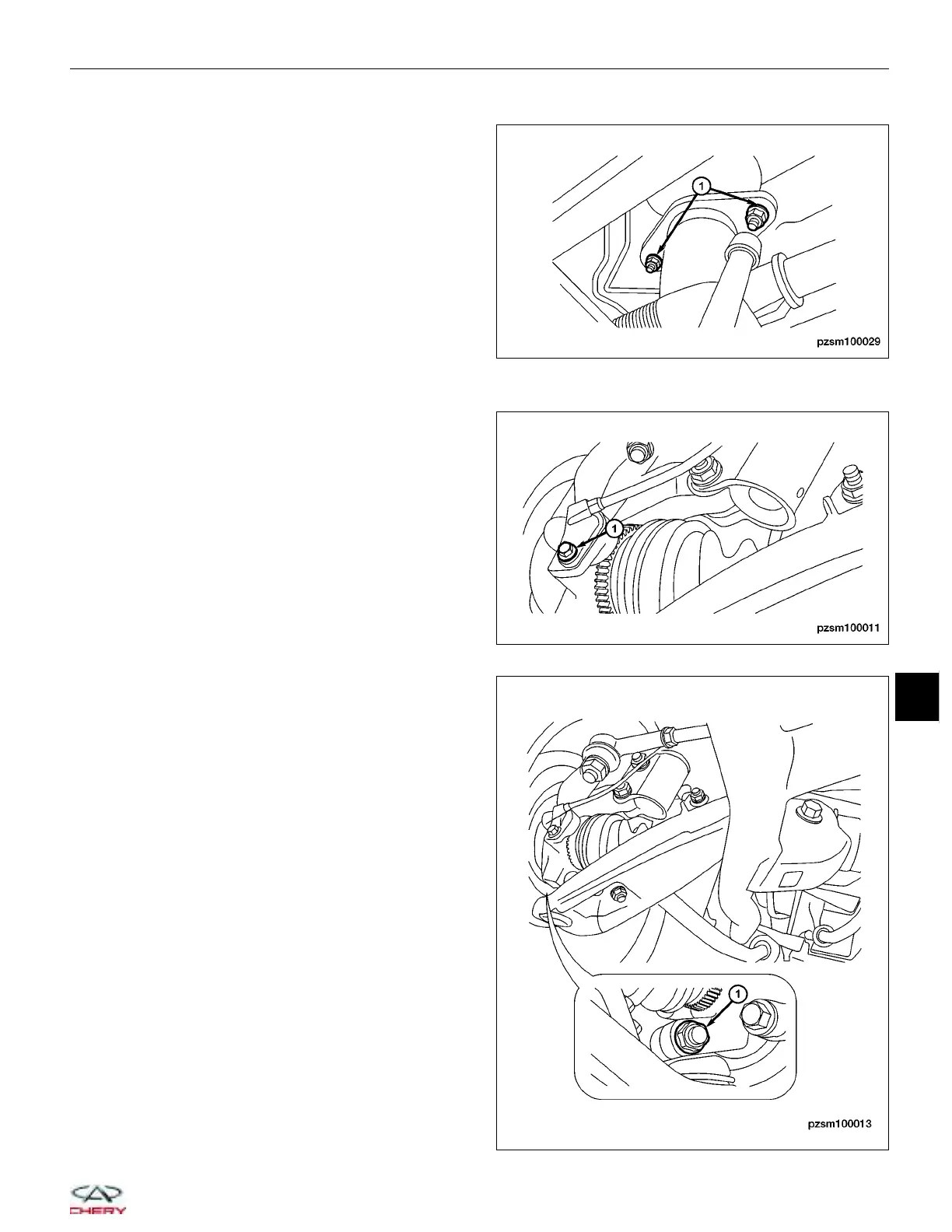

9. Raise the vehicle.
10. Remove the front exhaust pipe retaining bolts (1).
(Tighten: Front exhaust pipe retaining bolts to 50 ±
5 N·m)
11. Remove the exhaust pipe (See Exhaust Pipe Removal & Installation in Section 07 Exhaust).
12. Remove the vehicle speed sensor retaining bolt (1)
and set it aside.
(Tighten: Vehicle speed sensor bolt to 10 ± 1 N·m)
13. Remove the pinch bolt (1) from the steering
knuckle.
(Tighten: Steering knuckle pinch bolt to 110 N·m)
ON-VEHICLE SERVICE
PZSM100029
PZSM100011
PZSM100013
11
11–31
Chery Automobile Co., Ltd.
