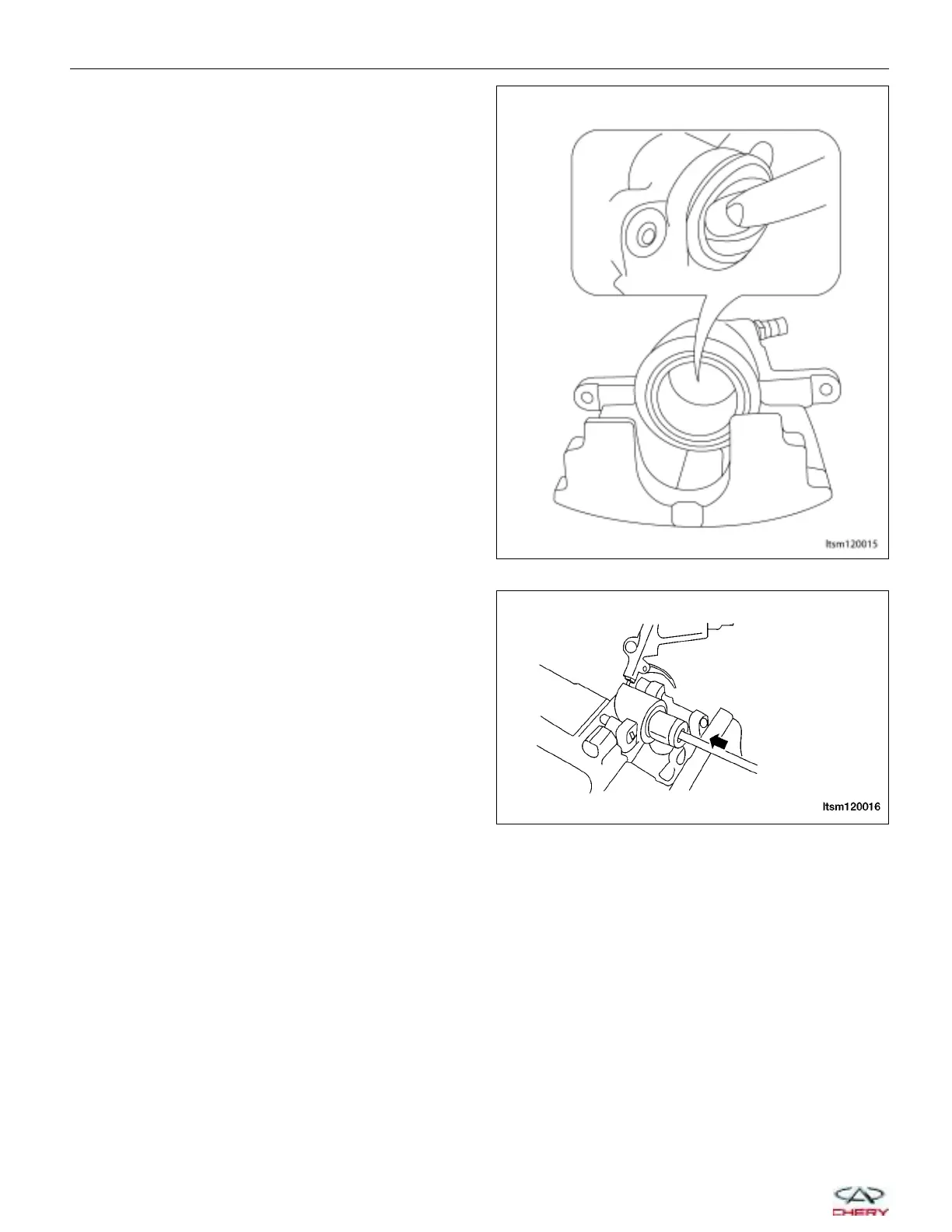

3. Install the new dust boot on the caliper piston and
seat the dust boot lip into the piston groove.
4. Stretch the dust boot rearward to straighten the
boot folds, then move the boot forward until the
fold snaps into place.
5. Install the piston into the caliper bore and press the
piston down to the bottom of the caliper bore by
hand or with the handle of a hammer in the direc-
tion shown.
NOTE: Apply a small amount of air pressure into
the caliper to help during assembly.
CAUTION:
When assembling, the force applied to the piston to seat it in the bore, must be applied uniformly
to avoid cocking and binding of the piston.
6. Seat the dust boot in caliper.
7. Install the new caliper bleed screw.
8. Install the caliper (See Front Brake Caliper Removal & Installation in Section 12 Brakes).
UNIT REPAIR
LTSM120015
LTSM120016
12–24
