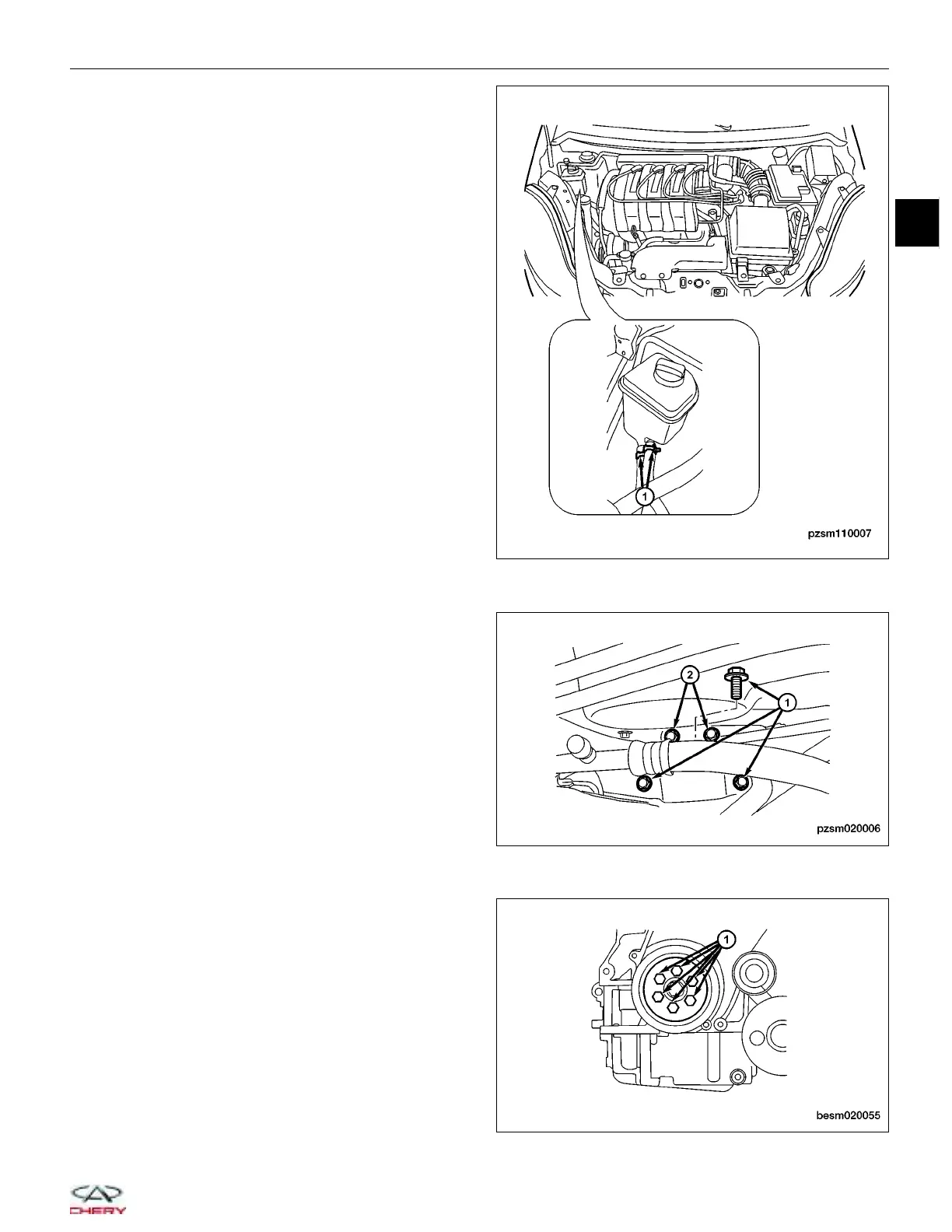

4. Remove the coolant reservoir clamps (1) and set
aside.
5. Attach an engine hoist and support the engine using the engine hoist.
6. Using special tool CH-20001, remove the engine
right mount bolts (1) and bracket bolts (2).
(Tighten: Engine right mount bolts to 65 ± 5 N·m)
7. Remove the accessory drive belt (See Accessory Drive Belt Removal & Installation in Section 02 Engine).
8. Remove the six crankshaft vibration damper bolts
(1).
(Tighten: Crankshaft vibration damper bolts to 25 ±
5 N·m and an additional 30 ± 5°)
ON-VEHICLE SERVICE
PZSM110007
PZSM020006
BESM020055
02
02–41
Chery Automobile Co., Ltd.
