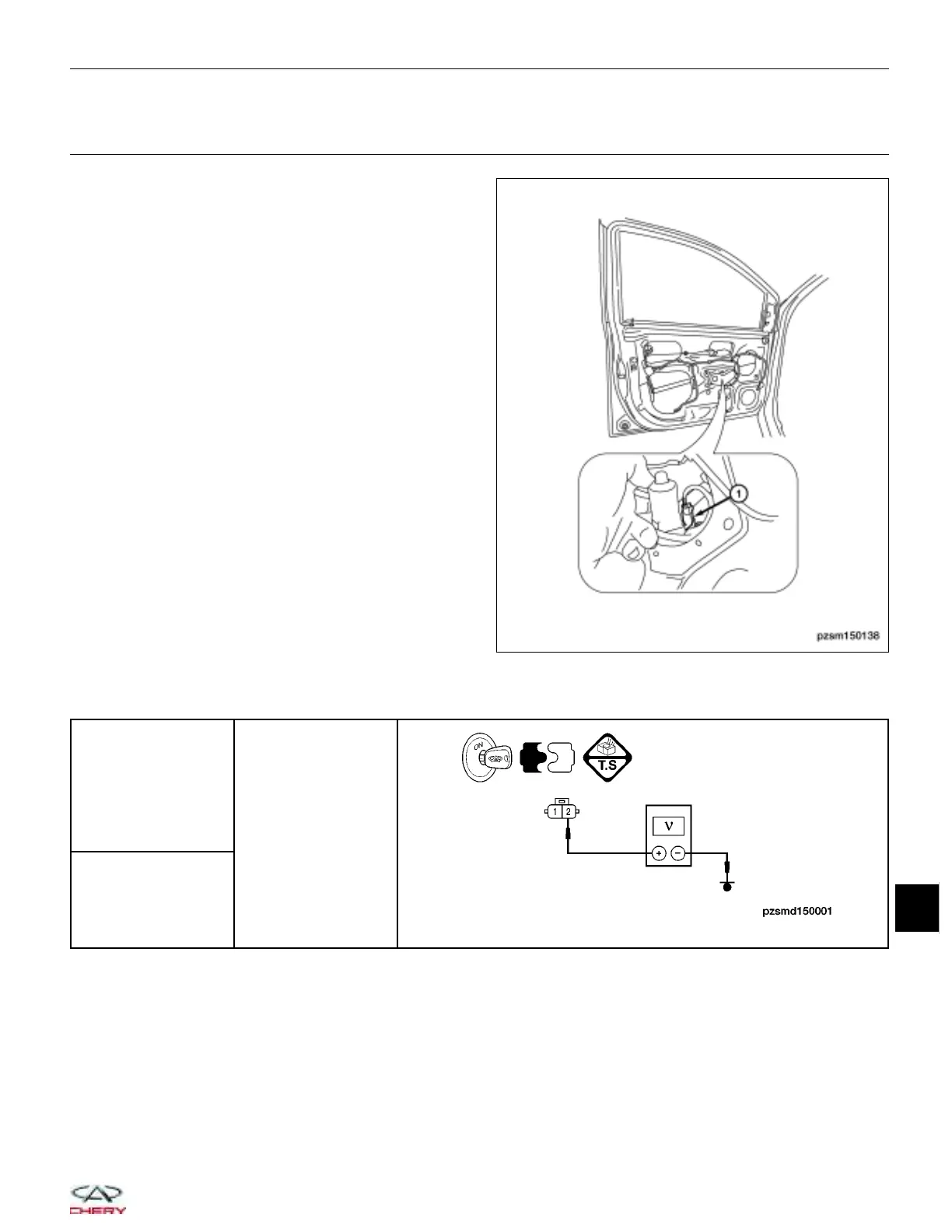

Diagnostic Procedure
1.
CHECK FRONT LH POWER WINDOW MOTOR POWER SUPPLY
• Turn ignition switch off.
• Disconnect front LH power window motor harness
connector (1) D-002.
• Turn ignition switch on.
• Check voltage between the front LH power window motor harness connector D-002, terminal 2 and ground
while operating the left front power window switch in the up position.
FRONT LH POWER
WINDOW MOTOR
TERMINAL
GROUND
2
• 12 V should exist.
Is the check result normal?
Yes
>> Go to the next step.
No
>> Repair or replace the circuit between the BCM connector B-002, terminal 30 and front LH power win-
dow motor connectors D-002, terminal 2 for an open or high resistance.
