ON-VEHICLE SERVICE

Body Control Module (BCM)

Removal & Installation

1. Disconnect the negative battery cable.

2. Remove the left front seat (See Front Seat Removal & Installation in Section 15 Body & Accessories).

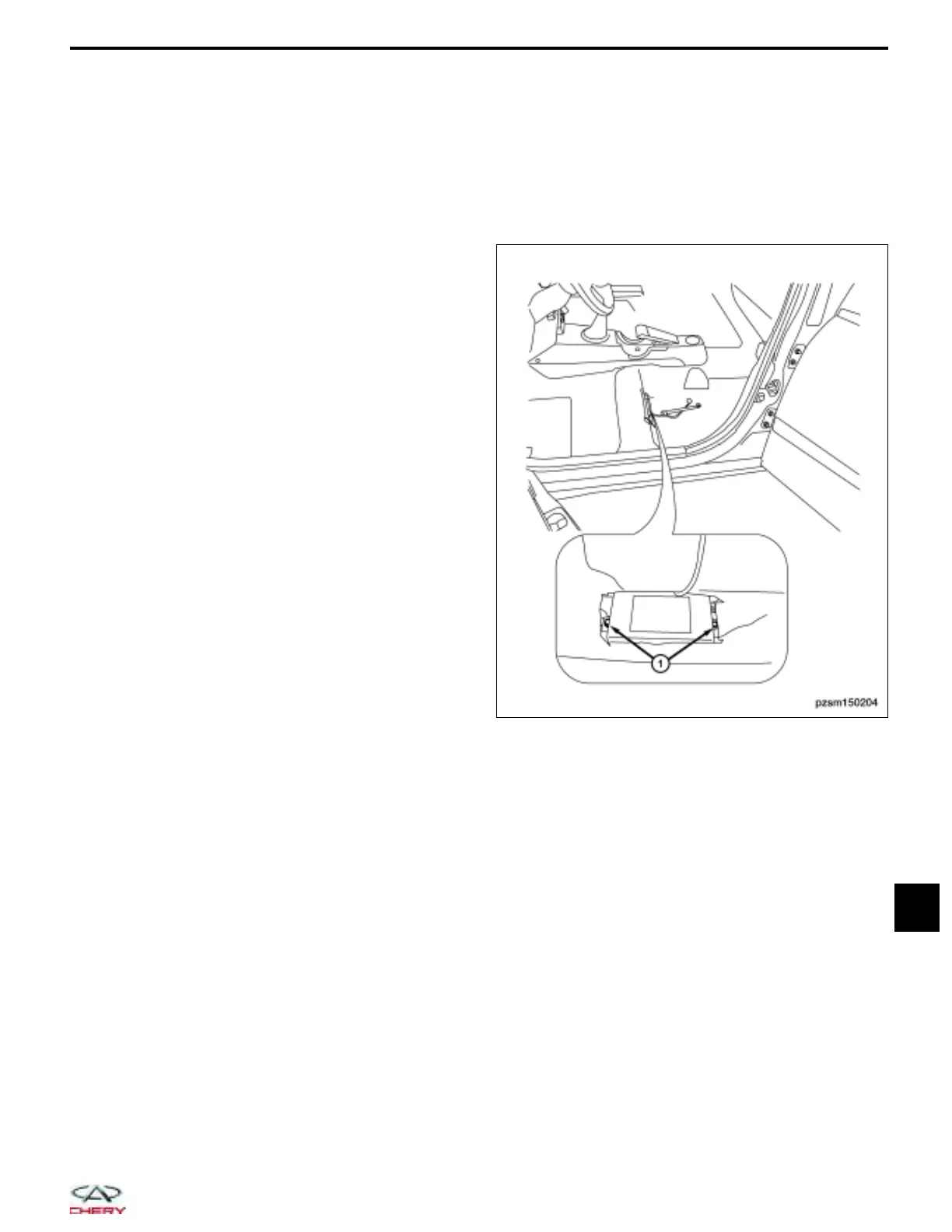

3. Remove the two BCM retaining bolts (1).

4. Disconnect the BCM electrical connector.

5. Remove the BCM.

6. Installation is in the reverse order of removal.

PZSM150204

15–67

Chery Automobile Co., Ltd.
