5.
CHECK IMMOBILIZER CONTROL MODULE POWER SUPPLY CIRCUIT
• Turn ignition switch off.
• Disconnect the negative battery cable.
• Check the continuity between the front fuse and relay box A-040, fuse SF1 (30A) and Immobilizer control mod-
ule connector C-025, terminal 1.
− Inspect front fuse and relay box A-040, fuse SF1 (30A) position (See Vehicle Wiring Harness Layout -
Engine Room Harness in Section 16 Wiring).
• Check harness continuity between body fuse box C-020, fuse F2 (10A) and Immobilizer control module connec-
tor C-025, terminal 4.
− Inspect body fuse box C-020, fuse F2 (10A) position (See Vehicle Wiring Harness Layout - Main Harness in
Section 16 Wiring).
• Continuity should exist.
• Check harness for short to ground.
• Continuity between Immobilizer control module power supply and ground should not exist.
Is the check result normal?
Yes
>> Go to the step 7.
No
>>
Check fuse F2 (10A), fuse 13 (10A) and fuse SF1 (30A). Verify the fuse is OK, If not OK, refer to the
wiring diagram to identify the possible causes of the shorted circuit.
Repair or replace the open or high resistance circuit or short to ground in harness or connectors.
6.
CHECK IMMOBILIZER CONTROL MODULE POWER SUPPLY CIRCUIT
• Turn ignition switch off.
• Disconnect the negative battery cable.

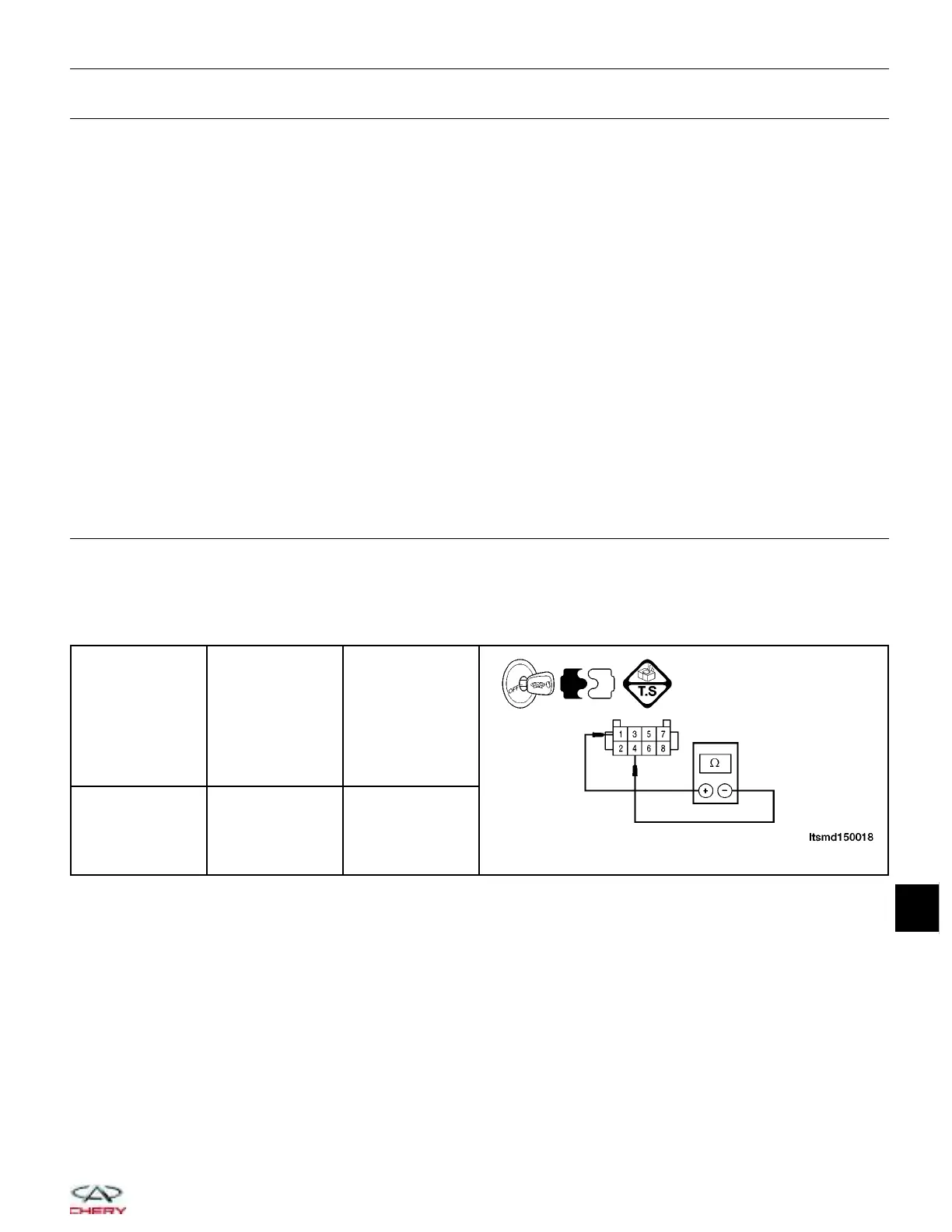

• Check the resistance between the Immobilizer control module ignition switch circuit terminal 4 and Immobilizer
control module power supply circuit terminal 1.
IMMOBILIZER
CONTROL
MODULE
TERMINAL
IMMOBILIZER
CONTROL
MODULE
TERMINAL
CONTINUITY
1 4 No
• Check resistance between Immobilizer control module ignition switch circuit and other power circuits.
Is the check result normal?
Yes
>> Go to the step 8.
No
>> Repair or replace short to power circuits in harness or connectors.
DIAGNOSIS & TESTING
15
15–135
Chery Automobile Co., Ltd.
To Next Page
