3.

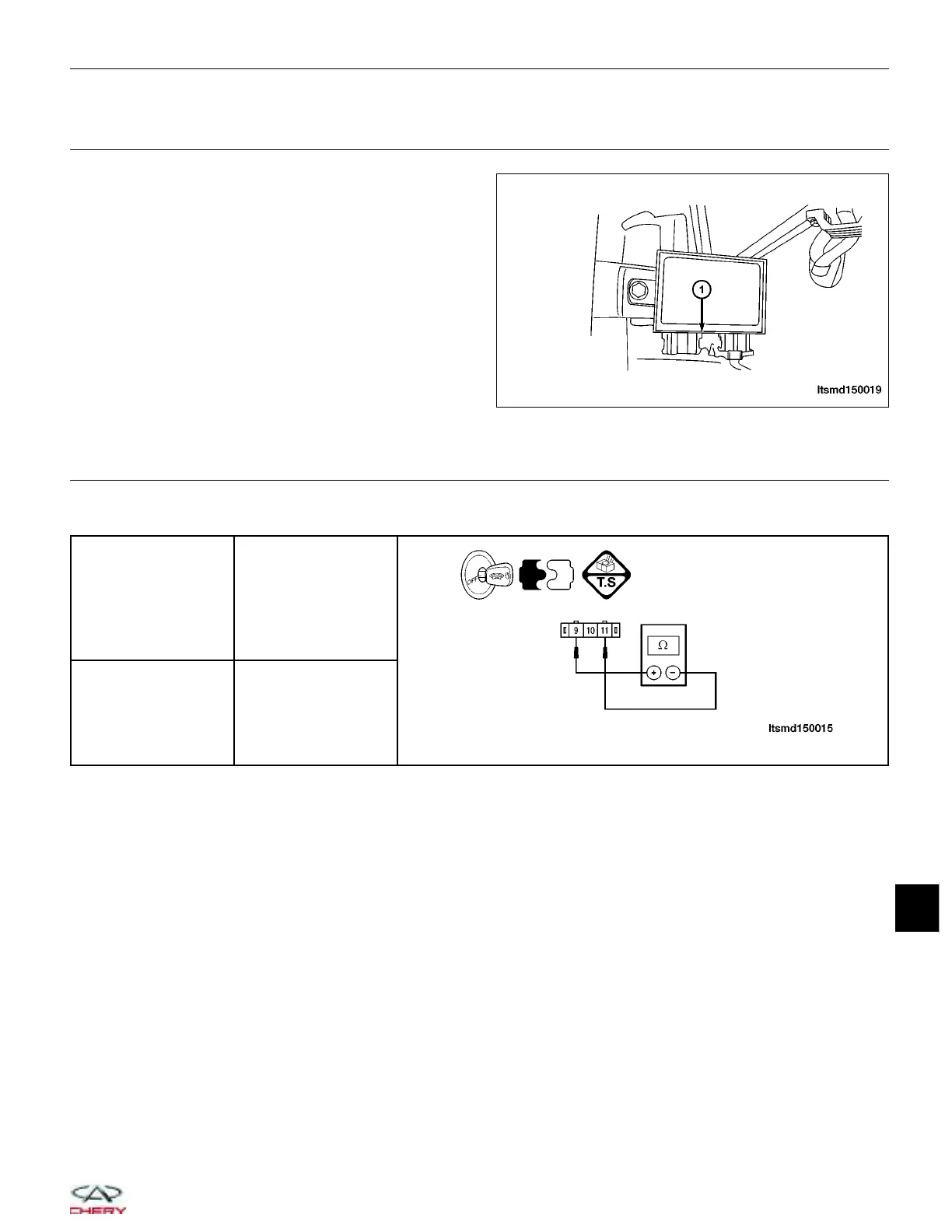

CHECK IMMOBILIZER CONTROL MODULE ELECTRICAL CONNECTOR
• Turn ignition switch off.
• Disconnect the Immobilizer control module electrical
connector C-026 (1).
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Yes
>> Go to the next step.
No
>> Repair or replace the electrical connector
as necessary.
4.
CHECK IMMOBILIZER COIL
• Check the resistance between the Immobilizer coil connector C-026, terminal 9 and terminal 11.
IMMOBILIZER COIL
TERMINAL
IMMOBILIZER COIL
TERMINAL
9 11
Does the resistance range from 5 to 20 ohms?
Yes
>> Go to the next step.
No
>> Replace the Immobilizer coil.
DIAGNOSIS & TESTING
LTSMD150019
15
15–139
Chery Automobile Co., Ltd.
