5.

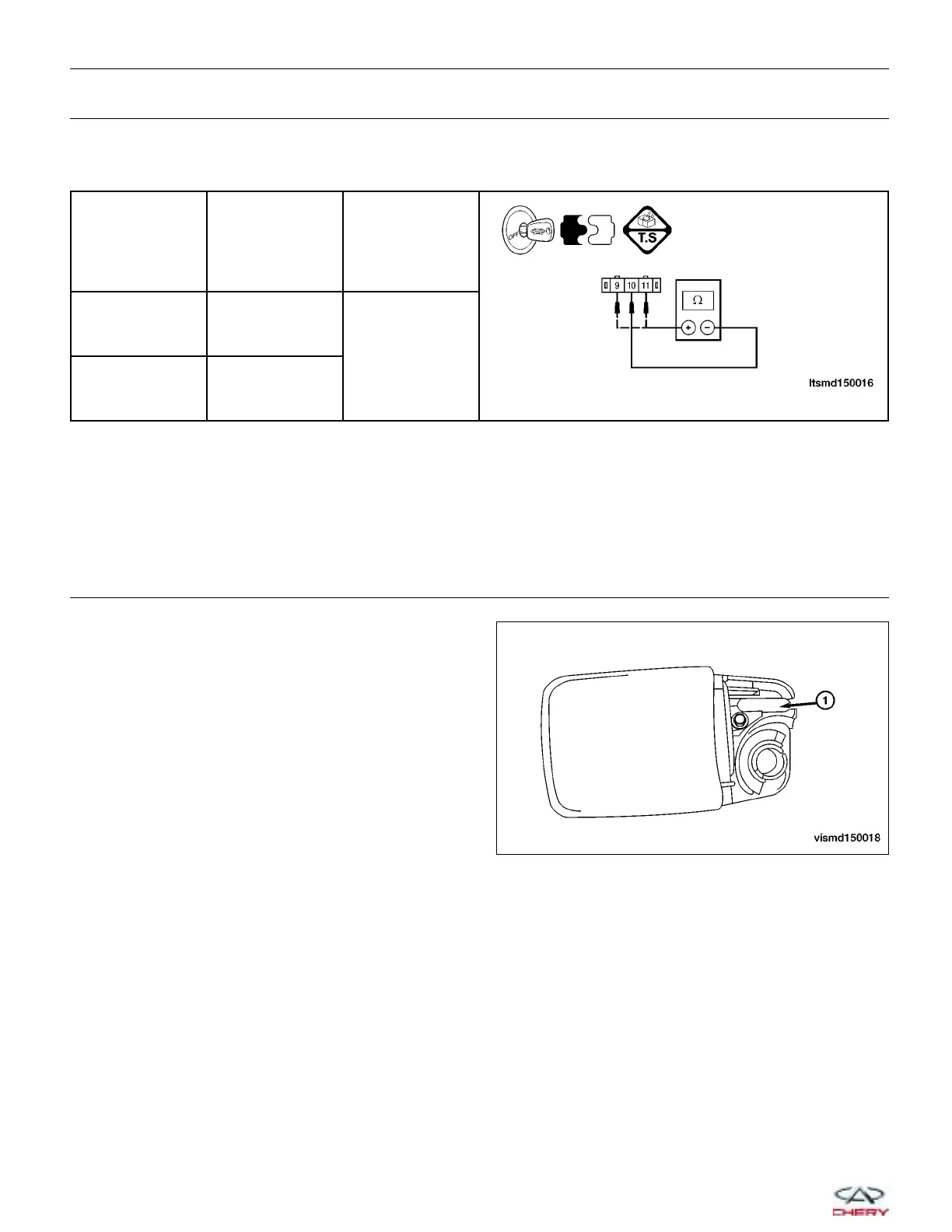

CHECK IMMOBILIZER COIL
• Check the resistance between the Immobilizer coil connector C-026, terminal 9 and terminal 10.
• Check the resistance between the Immobilizer coil connector C-026, terminal 11 and terminal 10.
IMMOBILIZER
COIL
TERMINAL
IMMOBILIZER
COIL
TERMINAL
CONTINUITY
9 10
No
11 10
• Continuity should not exist.
Is the check result normal?
Yes
>> Go to the next step.
No
>> Replace the Immobilizer coil.
6.
REPLACE AND MATCH TRANSPONDER
• Reconnect the Immobilizer control module electrical
connector C-026.
• Replace the chip (1) with a new one.
DIAGNOSIS & TESTING
VISMD150018
15–140
Chery Automobile Co., Ltd.
To Next Page
