Note: You can zoom on any symbol in display
If there is insufficient room symbols are concatenated:

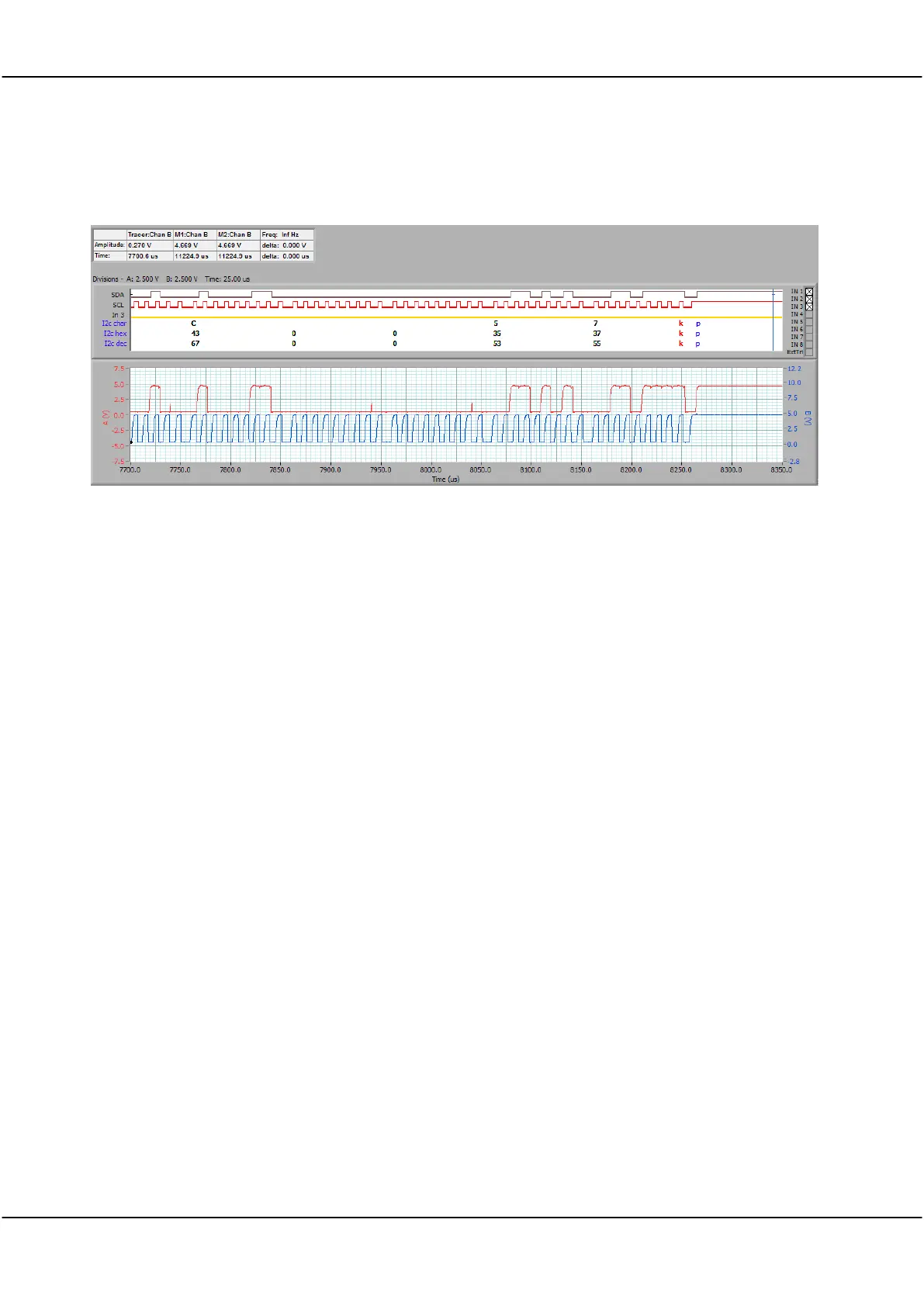

In this example the second message was extended, had repeated starts, and ended with a Nack. The whole
message is shown in red as a result. Zooming in shows the individual symbol colours and positions
