ComNav Commander P2 & P2VS Installation & Operation System Overview
Document PN 29010074 V4.1 - 30 -
Navigator G2 GPS Compasses Display
PN 20130003 (monochrome) or 20130004 (colour)
PN 10120001 or 10120003 (system with Vector G2 &15 or 30 m cable, monochrome)
PN 10120002 or 10120004 (system with Vector G2 &15 or 30 m cable, colour)
The ComNav Navigator G2 GPS Compass Display is an optional control & status display unit
for Vector G2 & G2B GPS Compasses.
The Navigator G2 option consists of a Display Head that is identical in shape, size & overall
appearance to the Commander P2’s Control Head, and a Distribution Unit that provides a
convenient way to connect the Vector G2/G2B to the P2 and to power. The Display Head is
available with a monochrome or colour LCD display; it uses the same mounting methods, and
cover, as the P2’s Control Head.
The Display Head provides graphical and textual information about the boat’s position,
heading, speed and turn rate. The Head also can display several menus, which are used to
control the configuration and operation of the Vector G2/G2B. Up to two Heads can be used
at once.

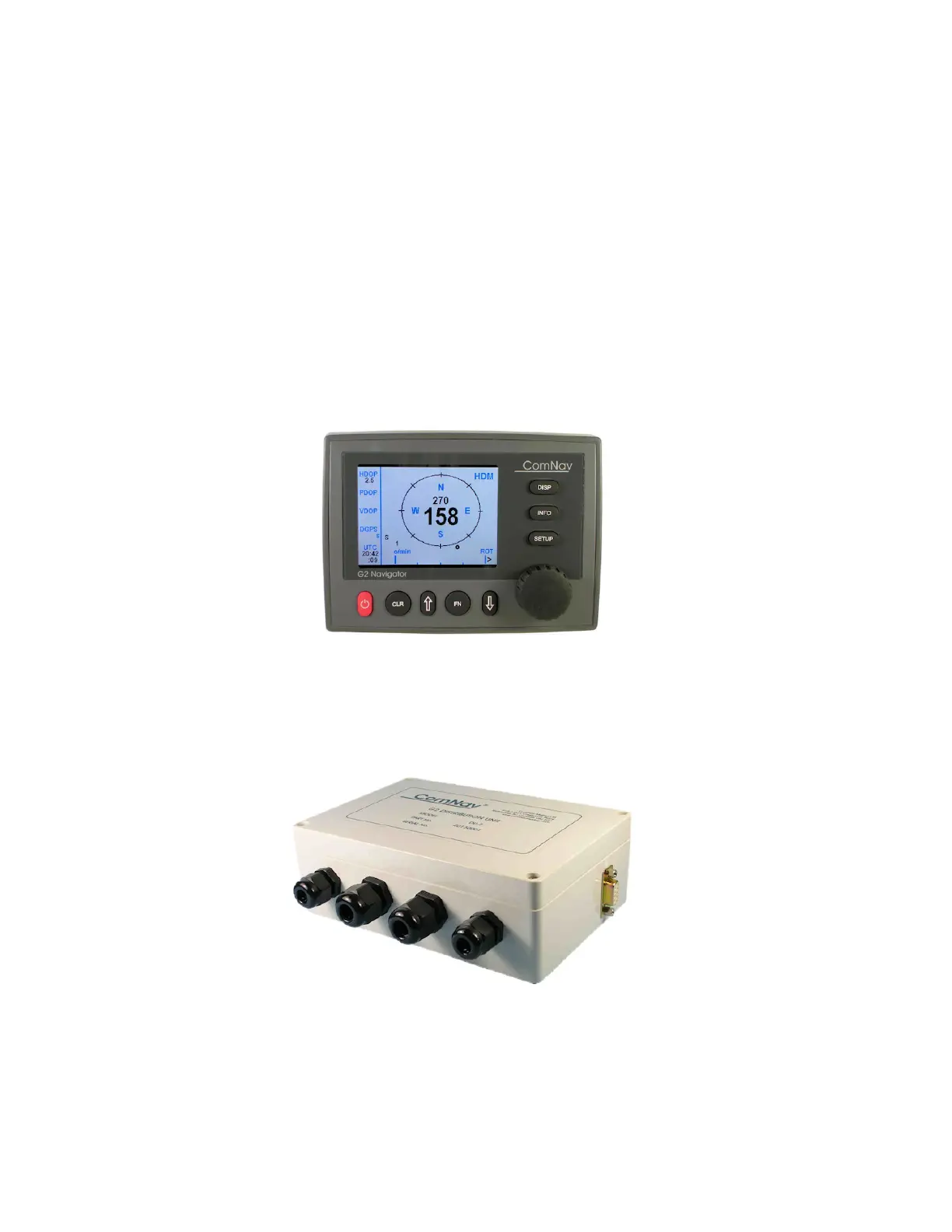

Figure 7 – Navigator G2 Display Head
The Distribution Unit connects the Display Head(s) to a Vector G2/G2B, and has a
convenient set of terminal strips for connecting power to the Vector, the signals to & from it,
and the signals to the Commander P2’s SPU. It also has a connector for the cable to a PC’s
COM port.
Figure 8 – Navigator G2 Distribution Unit
