ComNav Commander P2 & P2VS Installation & Operation System Overview
Document PN 29010074 V4.1 - 37 -
CR-203 Remote
PN 20310026 – 12m (40’) cable
PN 20310028 – 18m (60’) cable
The CR-203 Handheld Remote is specifically designed to operate with P Series autopilots.
The CR-203 Remote is similar in operation to the P Series Control Head. It provides
selection of STANDBY , TILLER , AUTO , and NAV modes, a Dodge/Turn switch &
Port/Starboard buttons, a Tiller lever (for control of the rudder’s position in TILLER mode),
and a monochrome-graphics LCD showing the boat’s heading & other information. The
attached 12 (or 18) metre strain-relieved cable plugs directly into either of the SPU’s AUX
Head inputs.
The CR-203 is designed to be used while held in one hand, anywhere on the boat within the
reach of the cable – even outside, since the enclosure is fully waterproof. When not in use, it
may be hung up on the boat’s dashboard or other convenient place, using “hook” slots on the
back side.

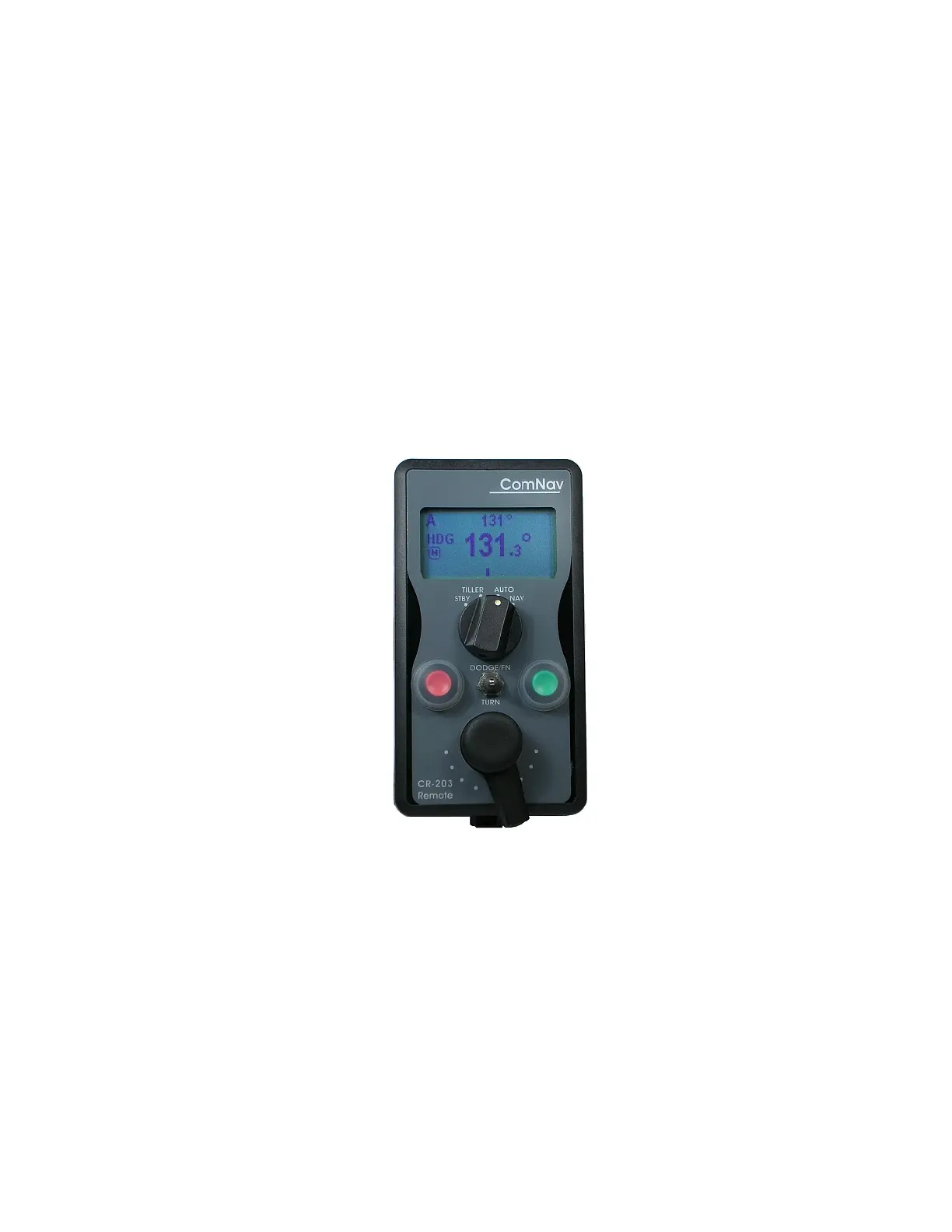

Figure 19 – CR-203 Handheld Remote
