ComNav Commander P2 - Figure 44 - Wiring Connections for Twin-Fin Wind Transducer; Wind Transducer

ComNav Commander P2 & P2VS Installation & Operation Installation
Document PN 29010074 V4.1 - 68 -
Wind Transducer
If you are connecting a ComNav Twin-Fin Wind Transducer to the Commander P2 SPU, it
must also be connected to the eleven-position plug that fits into the J8 – COMPASS receptacle.
Wire as per the following diagram.
Note: more than one wire (in the standard cables) will fit into the V+ and GD
connections, so you can connect a Wind Transducer and a Fluxgate (or Magnetic
Compass) and/or a 45° Compass Transducer, all at the same time.

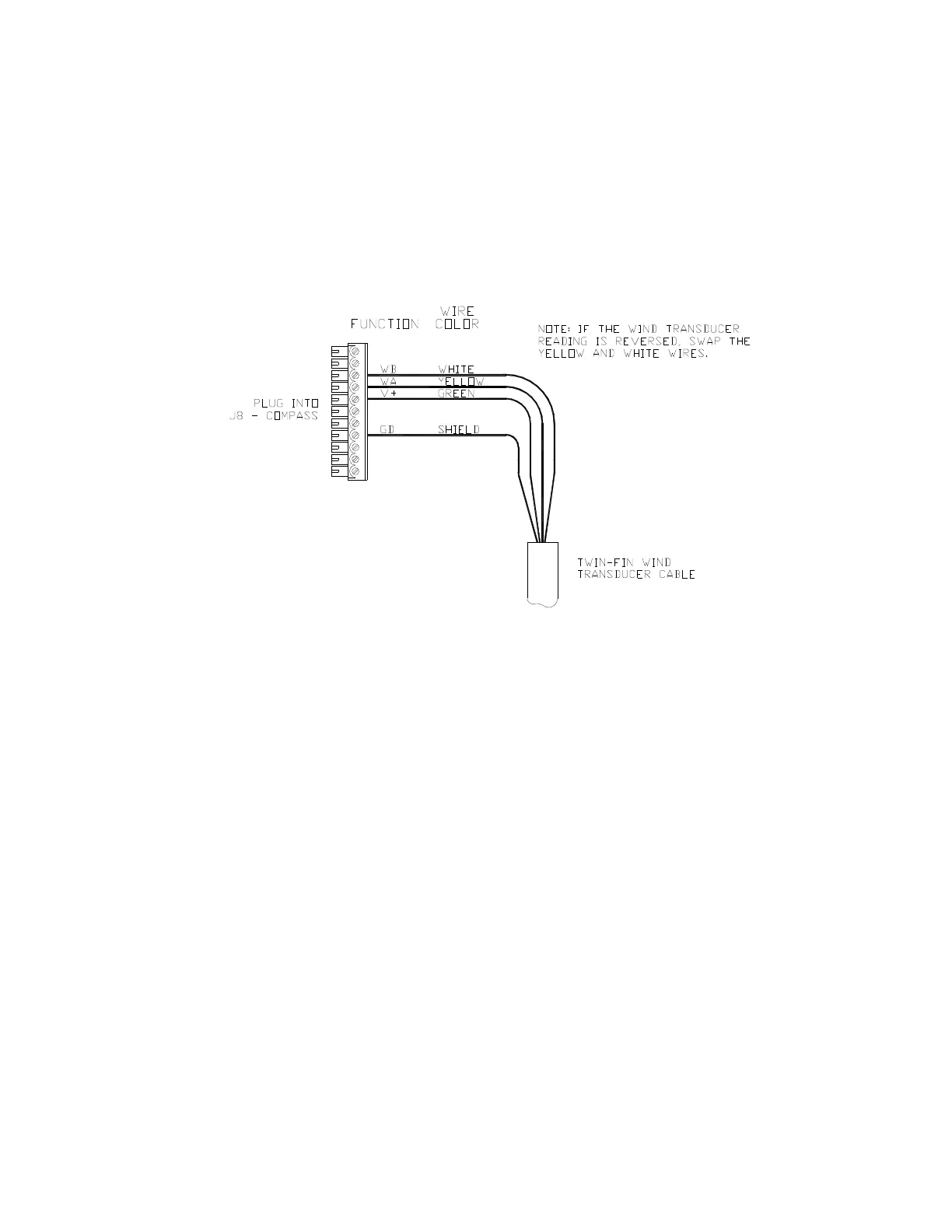

Figure 44 – Wiring Connections for Twin-Fin Wind Transducer
