ComNav Commander P2 - Rudder Follower Units and Wind Transducer

ComNav Commander P2 & P2VS Installation & Operation System Overview
Document PN 29010074 V4.1 - 35 -
fluxgate compass or a magnetic compass from another manufacturer. See your ComNav
Dealer for information on interfacing these compasses with the Commander P2 system.
Rudder Follower Units & Wind Sensors
Standard Rotary Rudder Follower Unit & Rudder Linkage
PN 20330008 (Follower Unit) & 20330007 (Linkage)
ComNav Commander P2 system kits come with a ComNav Medium Duty Rotary Rudder
Follower Unit.
Note: P2VS kits do not include an RFU – although one may optionally be used.
The Rudder Follower Unit is used to transmit (i.e., “feed back”) the position of the boat’s
rudder to the SPU. It is mechanically coupled to whichever part of the steering system the
autopilot controls. Normally, this is the boat’s rudder; however, it can be mounted to the
servo ram rather than the rudder, if the boat has two-stage steering (where the autopilot
drives a control or servo ram).

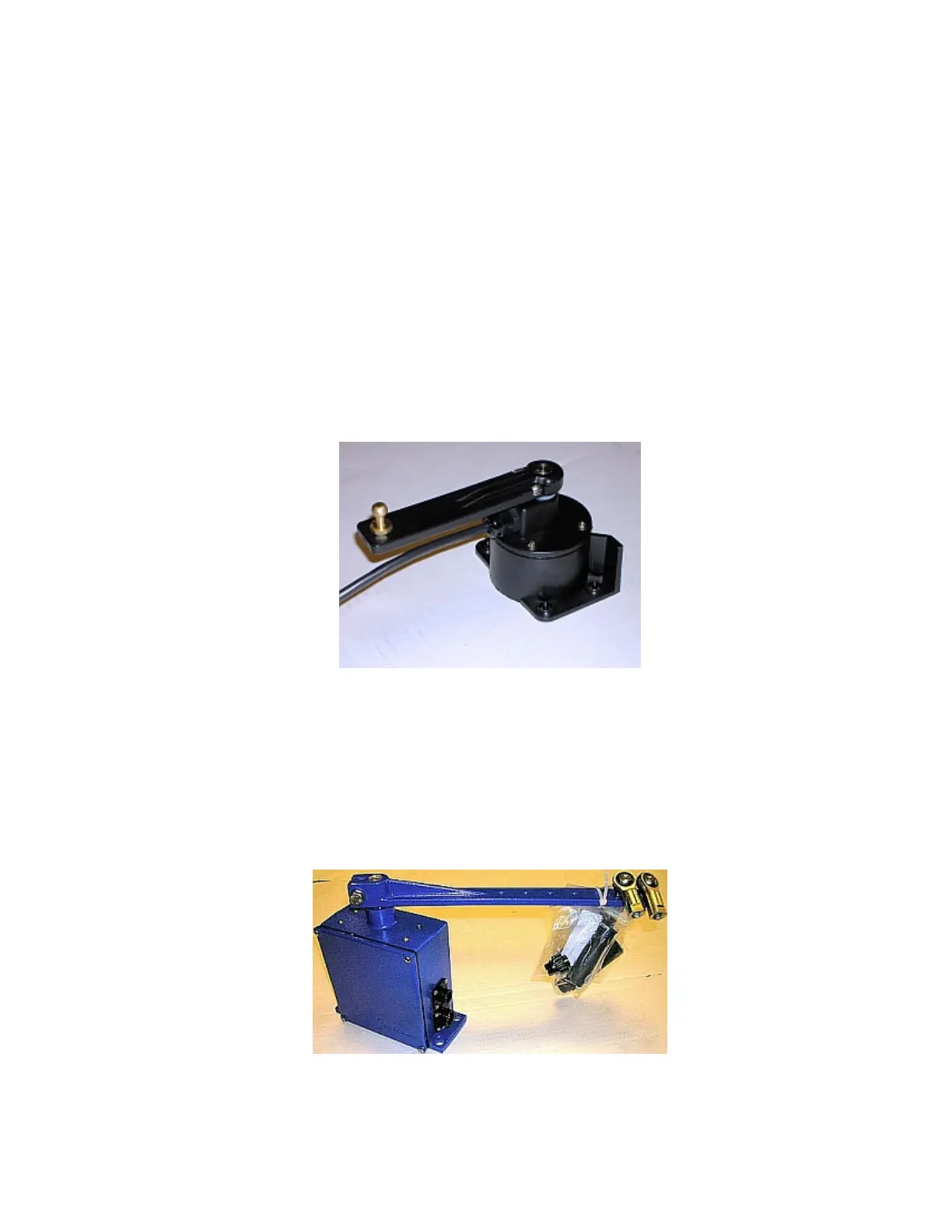

Figure 15 – Standard Rotary RFU
Heavy Duty Rotary Rudder Follower Unit
PN 20330012
A Heavy Duty Rotary Rudder Follower Unit is available for special applications. Check with
your ComNav Dealer to determine whether this product is suitable for your boat. Separate
installation instructions are provided with this RFU.
Figure 16 – Heavy Duty Rotary RFU
