ComNav Commander P2 - Figure 20 - TS-203 Fixed Remote; Remote

ComNav Commander P2 & P2VS Installation & Operation System Overview
Document PN 29010074 V4.1 - 38 -
TS-203 Remote
PN 20310025 – 12m (40’) cable
PN 20310030 – 18m (60’) cable
PN 30310011 – Ball Knob Kit
The TS-203 Fixed Remote is a heavy duty Full-Follow-Up (FFU) Lever control which allows
the operator to control the tiller steering and autopilot functions from any work station, flying
bridge or remote location on the boat.
The TS-203 is designed to be mounted anywhere convenient, inside or outside (it is fully
waterproof), and positioned horizontally, vertically or ay any angle desired. The attached 12
(or 18) metre strain-relieved cable plugs directly into either of the SPU’s AUX Head inputs; the
cable can be routed to exit the TS-203’s case from the back side, or from the top edge.

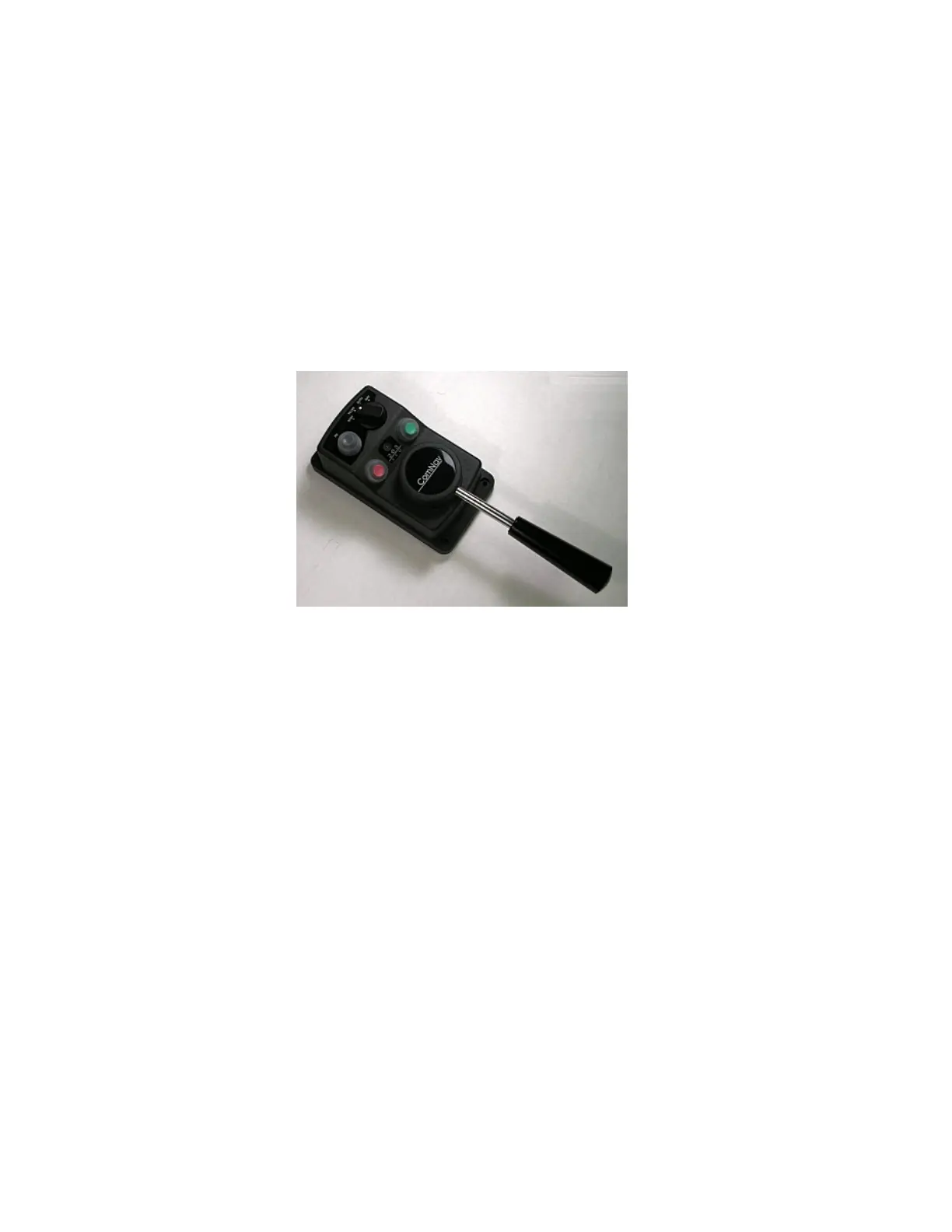

Figure 20 – TS-203 Fixed Remote
The optional Ball Knob Kit is a replacement for the TS-203’s standard tapered-handle Tiller
lever. It is intended to be used where a “ball handle” is preferred, or in installations where
there is limited space in which to mount the TS-203.
The kit’s ball & shaft are the same as used on ComNav’s NFU Jog Steering Control (see next
page). The total ball-shaft length is 12 cm (5”), as compared to the TS-203’s standard
handle-shaft length of 18 cm (7”).
